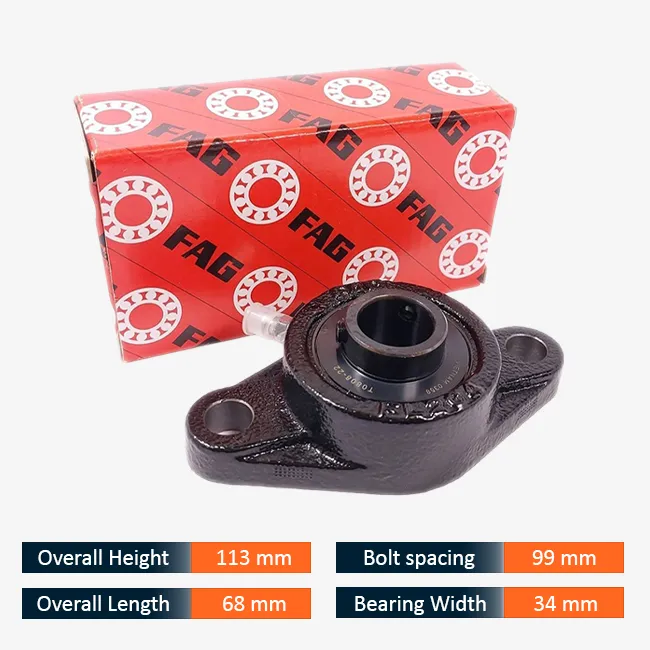

FAG UCFL 205 Pillow Block Bearing Unit (25 mm Bore x 113 mm Height x 99 mm Bolt Distance x 34 mm Width)

was ₹1,516.77 Special Price ₹1,042.78
FAG UCFL 205 pillow block bearing unit with 25 mm bore for conveyors and industrial machinery
Complete unit with housing and insert bearing: 113 mm height, 99 mm bolt distance, 34 mm width
Standard UCFL 205 size; match the 25 mm bore to your shaft and the bolt pattern to your frame
Availability:
In stock
SKU
FAG-UCFL-205

FAG UCFL 205 Pillow Block Bearing Unit (25 mm Bore x 113 mm Height x 99 mm Bolt Distance x 34 mm Width)

The FAG UCFL 205 Pillow Block Bearing Unit provides high-precision rotational support for 25 mm rotating shafts.

This product is part of the FAG UCFL 2-Bolt Oval Flange Cartridge Pillow Block Bearing Unit with Housing (20mm - 75mm Bore) range: Inner Diameter 25 mm.

The FAG UCFL 2-Bolt Oval Flange Bearing Series offers German-engineered 2-bolt diamond oval mounted units from 20 mm to 75 mm.

Key Features of the FAG UCFL 205 Pillow Block Bearing Unit (25 mm Bore x 113 mm Height x 99 mm Bolt Distance x 34 mm Width)

  • Inner Diameter: 25 mm
  • Standard ISO dimensions for a correct fit
  • Smooth, reliable rotation under load
  • Easy replacement using the size designation

FAG UCFL 205 Pillow Block Bearing Unit (25 mm Bore x 113 mm Height x 99 mm Bolt Distance x 34 mm Width) Specifications

Parameter Value
Inner Diameter 25 mm
Brand FAG
Manufacturer FAG
Overall height 113 mm
Distance between bolts 99 mm
Bearing width, total 34 mm
Housing Material Cast Iron
HSN Code 84832090
Model FAG UCFL 205
Overall length 68 mm
SKU FAG-UCFL-205

Available Options in this Range

Inner Diameter SKU
20 mm FAG-UCFL-204
25 mm FAG-UCFL-205 This product
30 mm FAG-UCFL-206
35 mm FAG-UCFL-207
40 mm FAG-UCFL-208
45 mm FAG-UCFL-209
50 mm FAG-UCFL-210
55 mm FAG-UCFL-211
60 mm FAG-UCFL-212
65 mm FAG-UCFL-213
70 mm FAG-UCFL-214
75 mm FAG-UCFL-215

Applications & Industries

  • Conveyor systems
  • Agricultural machinery
  • Packaging machines
  • Textile machinery
  • Pumps, fans and blowers
  • General industrial equipment

Benefits of the FAG UCFL 205 Pillow Block Bearing Unit (25 mm Bore x 113 mm Height x 99 mm Bolt Distance x 34 mm Width)

Features

Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.

Benefits

Smooth rotation, reliable load support and easy replacement using the standard size designation.

How to Choose the Right Option

  1. Confirm you need this option (Inner Diameter 25 mm) - compare it with the other options in the table above.
  2. Match the bore (inner diameter) to your shaft size.
  3. Check the outside diameter and width (or housing dimensions) against the mounting space.
  4. Copy the full designation, including any suffix, from the old bearing before ordering.
  5. Choose a sealed version where dust or moisture is present.

Why Choose Us

  • Ready stock with fast dispatch across India
  • Bulk pricing for industrial and B2B buyers
  • Quality-checked products for continuous industrial use
  • Expert support for product selection and compatibility
  • Trusted supplier for industrial laser spares and consumables

Frequently Asked Questions

Inner Diameter: 25 mm; Brand: FAG; Manufacturer: FAG; Overall height: 113 mm; Distance between bolts: 99 mm; Bearing width, total: 34 mm; Housing Material: Cast Iron; HSN Code: 84832090; Model: FAG UCFL 205; Overall length: 68 mm.

The range has 12 options. See the Available Options table on this page and choose the one that matches your requirement.

Read the designation on the old bearing, or measure the bore, outside diameter and width and match them to the options on this page.

The price depends on quantity. Bulk buyers can request a quote for the best pricing.

Yes, bulk quantities are available with competitive pricing and delivery across India.
