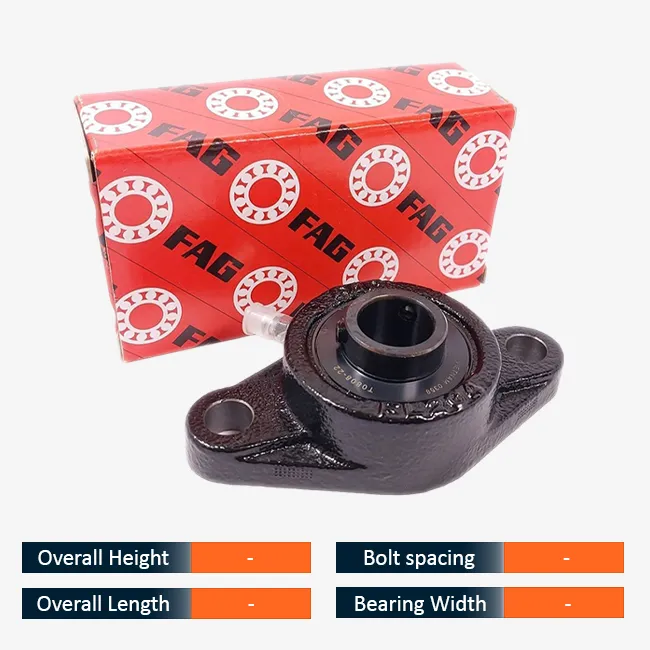

FAG UCFL 2-Bolt Oval Flange Cartridge Pillow Block Bearing Unit with Housing (20mm - 75mm Bore)

Be the first to review this product

As low as ₹1,000.49 was ₹1,455.26

Model	Overall height	Distance between bolts	Overall length	Bearing width, total	Inner diameter
FAG UCFL 204	113 mm	90 mm	60 mm	31 mm	20 mm
FAG UCFL 205	113 mm	99 mm	68 mm	34 mm	25 mm
FAG UCFL 206	147.5 mm	117 mm	80 mm	38.1 mm	30 mm
FAG UCFL 207	161 mm	130 mm	90 mm	42.9 mm	35 mm
FAG UCFL 208	174.5 mm	144 mm	100 mm	49.2 mm	40 mm
FAG UCFL 209	188 mm	148 mm	108 mm	49.2 mm	45 mm
FAG UCFL 210	197 mm	157 mm	115 mm	51.6 mm	50 mm
FAG UCFL 211	224 mm	184 mm	30 mm	55.6 mm	55 mm
FAG UCFL 212	250 mm	202 mm	140 mm	65.1 mm	60 mm
FAG UCFL 213	258 mm	210 mm	155 mm	65.1 mm	65 mm
FAG UCFL 214	265 mm	216 mm	160 mm	68.3 mm	70 mm
FAG UCFL 215	275 mm	225 mm	64 mm	78.8 mm	75 mm

Availability:

In stock

Only %1 left

SKU

FAG-UCFL-PARENT

Details

Product Overview

The FAG UCFL 2-Bolt Oval Flange Bearing Series offers German-engineered 2-bolt diamond oval mounted units from 20 mm to 75 mm.

Available Sizes & Specifications

Model	Overall height	Distance between bolts	Overall length	Bearing width, total	Inner diameter
FAG UCFL 204	113 mm	90 mm	60 mm	31 mm	20 mm
FAG UCFL 205	113 mm	99 mm	68 mm	34 mm	25 mm
FAG UCFL 206	147.5 mm	117 mm	80 mm	38.1 mm	30 mm
FAG UCFL 207	161 mm	130 mm	90 mm	42.9 mm	35 mm
FAG UCFL 208	174.5 mm	144 mm	100 mm	49.2 mm	40 mm
FAG UCFL 209	188 mm	148 mm	108 mm	49.2 mm	45 mm
FAG UCFL 210	197 mm	157 mm	115 mm	51.6 mm	50 mm
FAG UCFL 211	224 mm	184 mm	30 mm	55.6 mm	55 mm
FAG UCFL 212	250 mm	202 mm	140 mm	65.1 mm	60 mm
FAG UCFL 213	258 mm	210 mm	155 mm	65.1 mm	65 mm
FAG UCFL 214	265 mm	216 mm	160 mm	68.3 mm	70 mm
FAG UCFL 215	275 mm	225 mm	64 mm	78.8 mm	75 mm

Applications

Precision machinery, conveyors, heavy industrial drives, crushers, and power transmission equipment.
