was ₹16,690.00 Special Price ₹11,382.58

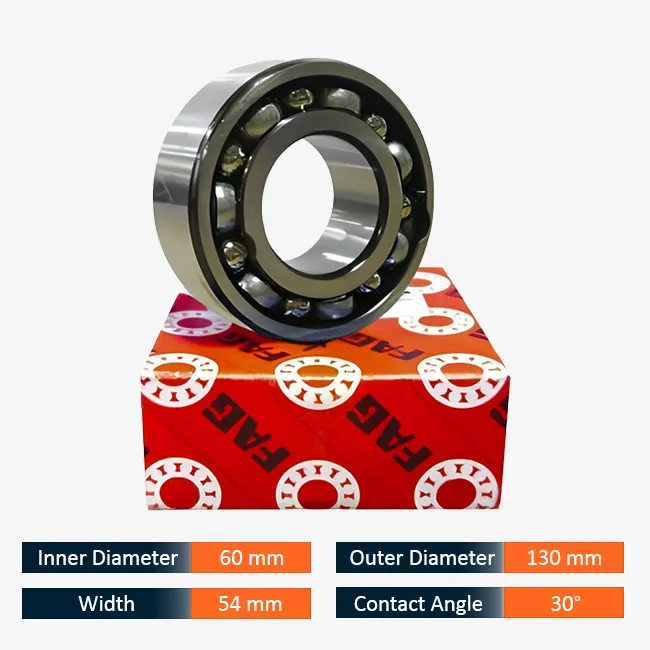

FAG 3312-BD-XL-TVH-L285 double row angular contact ball bearing, 60 mm bore x 130 mm OD x 54 mm width
30 degree contact angle and polyamide cage; carries radial loads and axial loads from both directions
For industrial machinery that needs combined radial and axial load support in one bearing
Availability:
In stock
SKU
FAG-3312-BD-XL-TVH-L285

3312-BD-XL-TVH-L285 FAG Double Row Angular Contact Ball Bearing

The FAG 3312-BD-XL-TVH-L285 is a heavy-duty 60mm bore angular contact bearing designed for severe mechanical environments requiring maximum rigidity.

This product is part of the FAG Double Row Angular Contact Ball Bearing range: Inner Diameter 60 mm, Outer Diameter 130 mm, Width 54 mm, Contact Angle 30 Degree.

This page carries FAG double row angular contact ball bearings across thirteen bore sizes - from a compact 20 mm bearing up to an 80 mm heavy-duty size. Instead of stocking one fixed bearing, we've set it up so you choose the dimensions your machine actually needs: inner diameter, outer diameter, width, and contact angle. Pick those, and the exact FAG designation, current price and stock status update to match.

Two FAG series sit behind this range. The 32-series covers FAG 3204-BD-XL-TVH-L285 through FAG 3216-B-TVH, bore sizes 20 mm to 80 mm. The 33-series is a heavier cross-section for the same bore range, from FAG 3304-BD-XL-TVH-L285 to FAG 3313-BD-XL-TVH-L285, bore sizes 20 mm to 65 mm. Nearly everything here runs a polyamide cage (that's the TVH in the designation) at a 30-degree contact angle - the one exception is the FAG 3311-BD-XL-TVH-L285, built at 45 degrees. Orders go out from our Ahmedabad warehouse with a GST invoice, and if you're not sure which size fits your application, our team can confirm it over WhatsApp before you order.

Key Features of the 3312-BD-XL-TVH-L285 FAG Double Row Angular Contact Ball Bearing

  • Inner Diameter: 60 mm
  • Outer Diameter: 130 mm
  • Width: 54 mm
  • Contact Angle: 30 Degree
  • Design: 33-series heavy wall geometry for extreme load handling.
  • Cage Material: Polyamide cage (TVH).
  • Performance: Superior fatigue resistance and smooth rotation.
  • Genuine FAG double row angular contact ball bearings, sold under the exact designation printed on the bearing
  • Bore sizes from 20 mm to 80 mm across two FAG series (32-series and 33-series)

3312-BD-XL-TVH-L285 FAG Double Row Angular Contact Ball Bearing Specifications

Parameter Value
Inner Diameter 60 mm
Outer Diameter 130 mm
Width 54 mm
Contact Angle 30 Degree
Brand FAG
Manufacturer FAG
Inner Diameter (ID) 60 mm
Outer Diameter (OD) 130 mm
Width (W) 54 mm
Bearing Type Double Row Angular Contact Ball Bearing
HSN Code 84822011
Bearing Designation FAG 3212-BD-XL-TVH-L285
SKU FAG-3312-BD-XL-TVH-L285

Available Options in this Range

Inner Diameter Outer Diameter Width Contact Angle SKU
20 mm 47 mm 20.6 mm 30 Degree FAG-3204-BD-XL-TVH-L285
20 mm 52 mm 22.2 mm 30 Degree FAG-3304-BD-XL-TVH-L285
25 mm 52 mm 20.6 mm 30 Degree FAG-3205-BD-XL-TVH-L285
25 mm 62 mm 25.4 mm 30 Degree FAG-3305-BD-XL-TVH-L285
30 mm 62 mm 23.8 mm 30 Degree FAG-3206-BD-XL-TVH-L285
30 mm 72 mm 30.2 mm 30 Degree FAG-3306-BD-XL-TVH-L285
35 mm 72 mm 27 mm 30 Degree FAG-3207-BD-XL-TVH-L285
35 mm 80 mm 34.9 mm 30 Degree FAG-3307-BD-XL-TVH-L285
40 mm 80 mm 30.2 mm 30 Degree FAG-3208-BD-XL-TVH-L285
40 mm 90 mm 36.5 mm 30 Degree FAG-3308-BD-XL-TVH-L285
45 mm 100 mm 39.7 mm 30 Degree FAG-3309-BD-XL-TVH-L285
45 mm 85 mm 30.2 mm 30 Degree FAG-3209-BD-XL-TVH-L285
50 mm 90 mm 30.2 mm 30 Degree FAG-3210-BD-XL-TVH-L285
50 mm 110 mm 44.4 mm 30 Degree FAG-3310-BD-XL-TVH-L285
55 mm 100 mm 33.3 mm 30 Degree FAG-3211-BD-XL-TVH-L285
55 mm 120 mm 49.2 mm 45 Degree FAG-3311-BD-XL-TVH-L285
60 mm 110 mm 36.5 mm 30 Degree FAG-3212-BD-XL-TVH-L285
60 mm 130 mm 54 mm 30 Degree FAG-3312-BD-XL-TVH-L285 This product
65 mm 140 mm 58.7 mm 30 Degree FAG-3313-BD-XL-TVH-L285
65 mm 120 mm 38.1 mm 30 Degree FAG-3213-BD-XL-TVH-L285
70 mm 125 mm 39.7 mm 30 Degree FAG-3214-B-TVH
75 mm 130 mm 41.3 mm 30 Degree FAG-3215-B-TVH
80 mm 140 mm 44.4 mm 30 Degree FAG-3216-B-TVH

Applications & Industries

  • Machine tool spindles and rotary tables
  • Gearboxes and speed reducers
  • Pumps and general rotating industrial equipment
  • Electric motors and material handling systems
  • Conveyor systems
  • Agricultural machinery
  • Packaging machines
  • Textile machinery

Benefits of the 3312-BD-XL-TVH-L285 FAG Double Row Angular Contact Ball Bearing

Features

Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.

Benefits

Smooth rotation, reliable load support and easy replacement using the standard size designation.

Compatibility

Replacing an existing bearing? Match all of these before you order, not just one or two:

Everything on this page is genuine FAG. We haven't checked how these cross over with SKF, NSK, NTN, Timken or other brands, so treat this as a FAG-to-FAG match and confirm against your machine's documentation rather than assuming a straight swap will work.

How to Choose the Right Option

  1. Confirm you need this option (Inner Diameter 60 mm, Outer Diameter 130 mm, Width 54 mm, Contact Angle 30 Degree) - compare it with the other options in the table above.
  2. Measure the shaft the bearing needs to sit on - that's your inner diameter.
  3. Measure the housing or mounting bore it needs to fit into - that's your outer diameter.
  4. Work out the axial space you have available - that's your width.
  5. Decide whether your application calls for a 30-degree or 45-degree contact angle.
  6. Match these against the FAG designation shown on this page - remember, one bore size can show up in two different series.
  7. Before ordering, cross-check the designation against your machine manufacturer's spec or the bearing you're replacing.

Why Choose Us

  • Industrial spare parts supplier based in Ahmedabad, Gujarat
  • Multiple FAG bearing sizes on one page, so you compare and select without switching listings
  • Full specifications shown for every size before you order
  • GST-registered supplier (GSTIN 24AFSFS3212F1Z2) with proper invoicing
  • WhatsApp support to confirm the correct size or designation before you buy

Frequently Asked Questions

Inner Diameter: 60 mm; Outer Diameter: 130 mm; Width: 54 mm; Contact Angle: 30 Degree; Brand: FAG; Manufacturer: FAG; Inner Diameter (ID): 60 mm; Outer Diameter (OD): 130 mm; Width (W): 54 mm; Bearing Type: Double Row Angular Contact Ball Bearing; HSN Code: 84822011; Bearing Designation: FAG 3212-BD-XL-TVH-L285.

The range has 23 options. See the Available Options table on this page and choose the one that matches your requirement.

Picture two rows of balls, each sitting at an angle to the bearing's axis rather than straight across it. That's the design, and it's what lets one compact bearing carry radial load and axial load in both directions, instead of needing a second bearing alongside it.

Thirteen bore sizes, 20 mm to 80 mm, split across two FAG series: the 32-series (FAG 3204-BD-XL-TVH-L285 to FAG 3216-B-TVH) and the 33-series (FAG 3304-BD-XL-TVH-L285 to FAG 3313-BD-XL-TVH-L285). Select your inner diameter, outer diameter and width and the exact designation and price will show.

Inner diameter is the bore - the hole the shaft passes through. Outer diameter is the other end of the bearing, the measurement that has to match your housing or mounting bore. Get either one wrong and the bearing just won't fit.

It's the bearing's thickness, measured face to face along the shaft. Width decides how much axial room the bearing takes up once installed, so it needs to match the space you've actually got in your assembly.

It's the angle load travels through as it passes from the balls to the raceways - a steeper angle means more axial (thrust) capacity. Most sizes here run 30 degrees; the FAG 3311-BD-XL-TVH-L285 is the exception, built at 45 degrees.

Select your inner diameter, outer diameter and width on this page and the matching designation, price and availability appear automatically. Worth knowing: the same bore size sometimes falls in both FAG series with a different outer diameter and width, so check all three measurements together rather than the bore alone.
