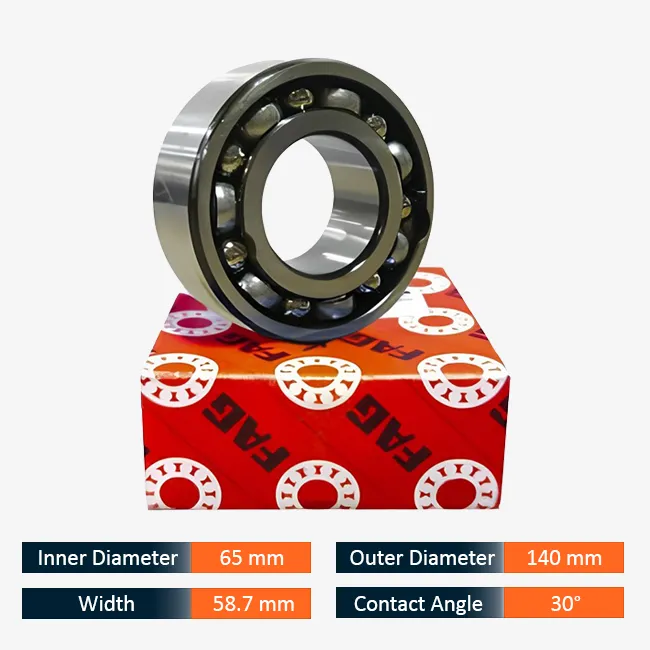

FAG high-capacity double row angular contact ball bearing (3313-BD-XL-TVH-L285). Features 65 mm ID x 140 mm OD x 58.7 mm Width, 30 Degree contact angle for demanding industrial applications.
The FAG 3313-BD-XL-TVH-L285 is the largest in this category range, offering maximum radial capacity, axial rigidity, and long service life under high-load continuous industrial duty.
Key Features
Design: High dynamic capacity dual raceway structure.
Cage Material: Heavy-duty polyamide cage (TVH).
Durability: Built for tough operating environments and continuous load cycles.
Technical Specifications
Inner Diameter (ID)
65 mm
Outer Diameter (OD)
140 mm
Width (W)
58.7 mm
Contact Angle
30 Degree
Bearing Type
Double Row Angular Contact Ball Bearing
HSN Code
84822011
Applications
Heavy duty extruders, mining equipment, marine drives, turbines, and large industrial gearboxes.
