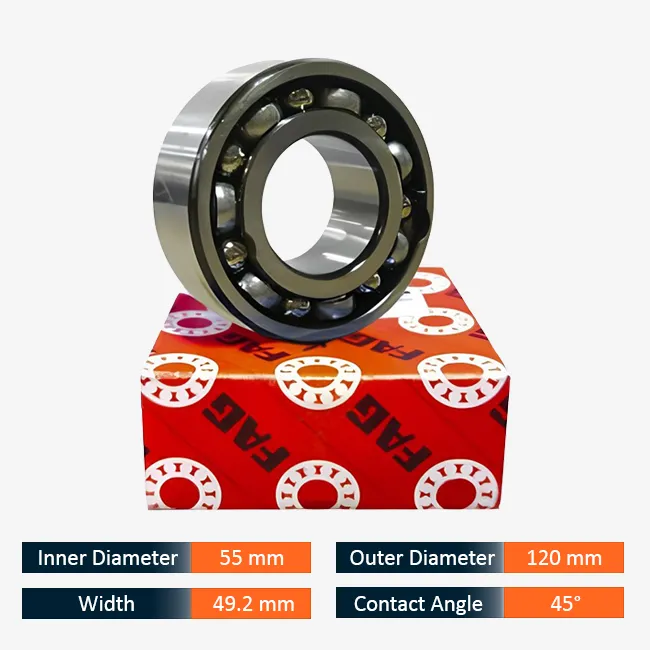

3311-BD-XL-TVH-L285 FAG Double Row Angular Contact Ball Bearing
was
₹13,397.00
Special Price
₹9,136.75
FAG high-capacity double row angular contact ball bearing (3311-BD-XL-TVH-L285). Features 55 mm ID x 120 mm OD x 49.2 mm Width, 45 Degree contact angle for demanding industrial applications.
Availability:
In stock
SKU
FAG-3311-BD-XL-TVH-L285
Product Overview
The FAG 3311-BD-XL-TVH-L285 features a specialized 45 Degree contact angle for high axial thrust capacity alongside standard radial load support.
Key Features
- Design: 45 Degree steep contact angle for enhanced axial thrust load capacity.
- Cage Material: Polyamide cage (TVH).
- Precision: High-grade manufacturing ensuring reliable continuous duty.
Technical Specifications
| Inner Diameter (ID) | 55 mm |
| Outer Diameter (OD) | 120 mm |
| Width (W) | 49.2 mm |
| Contact Angle | 45 Degree |
| Bearing Type | Double Row Angular Contact Ball Bearing |
| HSN Code | 84822011 |
Applications
Heavy thrust-loaded shafts, deep well pumps, extruders, and severe-duty gear drives.
| Brand | FAG |
|---|---|
| Inner Diameter | 55 mm |
| Outer Diameter | 120 mm |
| Width | 49.2 mm |
| Contact Angle | 45 Degree |
