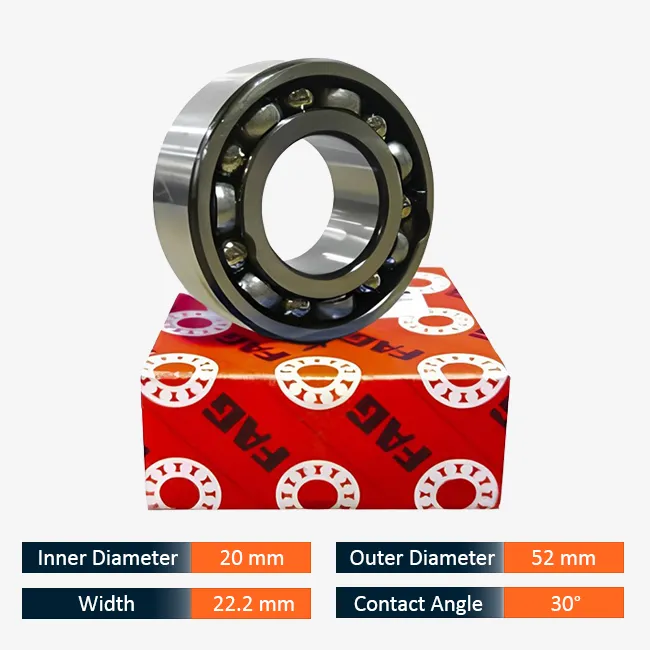

FAG high-capacity double row angular contact ball bearing (3304-BD-XL-TVH-L285). Features 20 mm ID x 52 mm OD x 22.2 mm Width, 30 Degree contact angle for demanding industrial applications.
The FAG 3304-BD-XL-TVH-L285 belongs to the wider 33-series, offering higher load-carrying capacity than standard 32-series bearings of equivalent bore sizes.
Key Features
Design: 33-series heavy cross-section for maximum radial and axial load capacity.
Cage Material: Polyamide (TVH) cage.
X-life Rating: Increased life expectancy and low heat generation.
Technical Specifications
Inner Diameter (ID)
20 mm
Outer Diameter (OD)
52 mm
Width (W)
22.2 mm
Contact Angle
30 Degree
Bearing Type
Double Row Angular Contact Ball Bearing
HSN Code
84822011
Applications
High-pressure pumps, machine tool heads, vibrating screens, and heavy-duty gearboxes.
