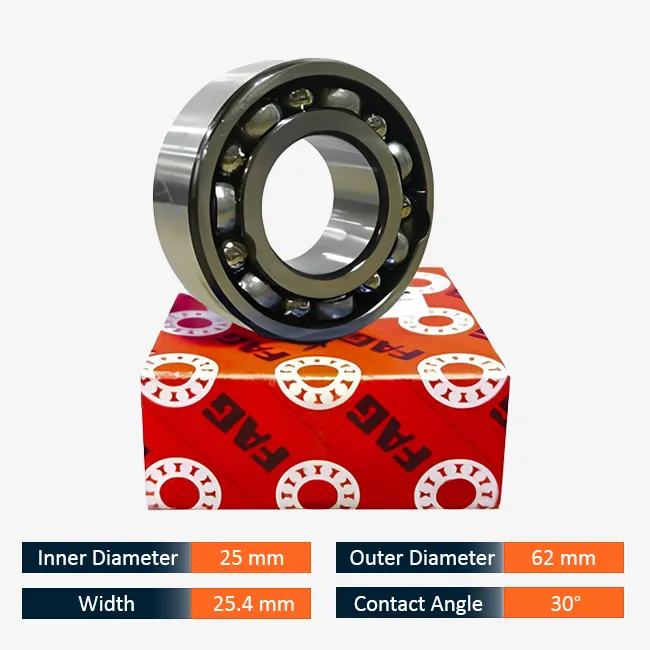

The FAG 3305-BD-XL-TVH-L285 is a heavy-series double row angular contact bearing built for demanding applications that require high radial stiffness and thrust resistance.
This product is part of the FAG Double Row Angular Contact Ball Bearing range: Inner Diameter 25 mm, Outer Diameter 62 mm, Width 25.4 mm, Contact Angle 30 Degree.
This page carries FAG double row angular contact ball bearings across thirteen bore sizes - from a compact 20 mm bearing up to an 80 mm heavy-duty size. Instead of stocking one fixed bearing, we've set it up so you choose the dimensions your machine actually needs: inner diameter, outer diameter, width, and contact angle. Pick those, and the exact FAG designation, current price and stock status update to match.
Two FAG series sit behind this range. The 32-series covers FAG 3204-BD-XL-TVH-L285 through FAG 3216-B-TVH, bore sizes 20 mm to 80 mm. The 33-series is a heavier cross-section for the same bore range, from FAG 3304-BD-XL-TVH-L285 to FAG 3313-BD-XL-TVH-L285, bore sizes 20 mm to 65 mm. Nearly everything here runs a polyamide cage (that's the TVH in the designation) at a 30-degree contact angle - the one exception is the FAG 3311-BD-XL-TVH-L285, built at 45 degrees. Orders go out from our Ahmedabad warehouse with a GST invoice, and if you're not sure which size fits your application, our team can confirm it over WhatsApp before you order.
| Parameter | Value |
|---|---|
| Inner Diameter | 25 mm |
| Outer Diameter | 62 mm |
| Width | 25.4 mm |
| Contact Angle | 30 Degree |
| Brand | FAG |
| Manufacturer | FAG |
| Inner Diameter (ID) | 25 mm |
| Outer Diameter (OD) | 62 mm |
| Width (W) | 25.4 mm |
| Bearing Type | Double Row Angular Contact Ball Bearing |
| HSN Code | 84822011 |
| Bearing Designation | FAG 3205-BD-XL-TVH-L285 |
| SKU | FAG-3305-BD-XL-TVH-L285 |
| Inner Diameter | Outer Diameter | Width | Contact Angle | SKU | |
|---|---|---|---|---|---|
| 20 mm | 47 mm | 20.6 mm | 30 Degree | FAG-3204-BD-XL-TVH-L285 | |
| 20 mm | 52 mm | 22.2 mm | 30 Degree | FAG-3304-BD-XL-TVH-L285 | |
| 25 mm | 52 mm | 20.6 mm | 30 Degree | FAG-3205-BD-XL-TVH-L285 | |
| 25 mm | 62 mm | 25.4 mm | 30 Degree | FAG-3305-BD-XL-TVH-L285 | This product |
| 30 mm | 62 mm | 23.8 mm | 30 Degree | FAG-3206-BD-XL-TVH-L285 | |
| 30 mm | 72 mm | 30.2 mm | 30 Degree | FAG-3306-BD-XL-TVH-L285 | |
| 35 mm | 72 mm | 27 mm | 30 Degree | FAG-3207-BD-XL-TVH-L285 | |
| 35 mm | 80 mm | 34.9 mm | 30 Degree | FAG-3307-BD-XL-TVH-L285 | |
| 40 mm | 80 mm | 30.2 mm | 30 Degree | FAG-3208-BD-XL-TVH-L285 | |
| 40 mm | 90 mm | 36.5 mm | 30 Degree | FAG-3308-BD-XL-TVH-L285 | |
| 45 mm | 100 mm | 39.7 mm | 30 Degree | FAG-3309-BD-XL-TVH-L285 | |
| 45 mm | 85 mm | 30.2 mm | 30 Degree | FAG-3209-BD-XL-TVH-L285 | |
| 50 mm | 90 mm | 30.2 mm | 30 Degree | FAG-3210-BD-XL-TVH-L285 | |
| 50 mm | 110 mm | 44.4 mm | 30 Degree | FAG-3310-BD-XL-TVH-L285 | |
| 55 mm | 100 mm | 33.3 mm | 30 Degree | FAG-3211-BD-XL-TVH-L285 | |
| 55 mm | 120 mm | 49.2 mm | 45 Degree | FAG-3311-BD-XL-TVH-L285 | |
| 60 mm | 110 mm | 36.5 mm | 30 Degree | FAG-3212-BD-XL-TVH-L285 | |
| 60 mm | 130 mm | 54 mm | 30 Degree | FAG-3312-BD-XL-TVH-L285 | |
| 65 mm | 140 mm | 58.7 mm | 30 Degree | FAG-3313-BD-XL-TVH-L285 | |
| 65 mm | 120 mm | 38.1 mm | 30 Degree | FAG-3213-BD-XL-TVH-L285 | |
| 70 mm | 125 mm | 39.7 mm | 30 Degree | FAG-3214-B-TVH | |
| 75 mm | 130 mm | 41.3 mm | 30 Degree | FAG-3215-B-TVH | |
| 80 mm | 140 mm | 44.4 mm | 30 Degree | FAG-3216-B-TVH |
Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.
Smooth rotation, reliable load support and easy replacement using the standard size designation.
Replacing an existing bearing? Match all of these before you order, not just one or two:
Everything on this page is genuine FAG. We haven't checked how these cross over with SKF, NSK, NTN, Timken or other brands, so treat this as a FAG-to-FAG match and confirm against your machine's documentation rather than assuming a straight swap will work.
Inner Diameter: 25 mm; Outer Diameter: 62 mm; Width: 25.4 mm; Contact Angle: 30 Degree; Brand: FAG; Manufacturer: FAG; Inner Diameter (ID): 25 mm; Outer Diameter (OD): 62 mm; Width (W): 25.4 mm; Bearing Type: Double Row Angular Contact Ball Bearing; HSN Code: 84822011; Bearing Designation: FAG 3205-BD-XL-TVH-L285.
The range has 23 options. See the Available Options table on this page and choose the one that matches your requirement.
Picture two rows of balls, each sitting at an angle to the bearing's axis rather than straight across it. That's the design, and it's what lets one compact bearing carry radial load and axial load in both directions, instead of needing a second bearing alongside it.
Thirteen bore sizes, 20 mm to 80 mm, split across two FAG series: the 32-series (FAG 3204-BD-XL-TVH-L285 to FAG 3216-B-TVH) and the 33-series (FAG 3304-BD-XL-TVH-L285 to FAG 3313-BD-XL-TVH-L285). Select your inner diameter, outer diameter and width and the exact designation and price will show.
Inner diameter is the bore - the hole the shaft passes through. Outer diameter is the other end of the bearing, the measurement that has to match your housing or mounting bore. Get either one wrong and the bearing just won't fit.
It's the bearing's thickness, measured face to face along the shaft. Width decides how much axial room the bearing takes up once installed, so it needs to match the space you've actually got in your assembly.
It's the angle load travels through as it passes from the balls to the raceways - a steeper angle means more axial (thrust) capacity. Most sizes here run 30 degrees; the FAG 3311-BD-XL-TVH-L285 is the exception, built at 45 degrees.
Select your inner diameter, outer diameter and width on this page and the matching designation, price and availability appear automatically. Worth knowing: the same bore size sometimes falls in both FAG series with a different outer diameter and width, so check all three measurements together rather than the bore alone.
Looking for a reliable supplier of the 3305-BD-XL-TVH-L285 FAG Double Row Angular Contact Ball Bearing in India? Get bulk pricing, fast delivery and expert support. Contact us today for the best deal.
Request Quote| Brand | FAG |
|---|---|
| Inner Diameter | 25 mm |
| Outer Diameter | 62 mm |
| Width | 25.4 mm |
| Contact Angle | 30 Degree |
