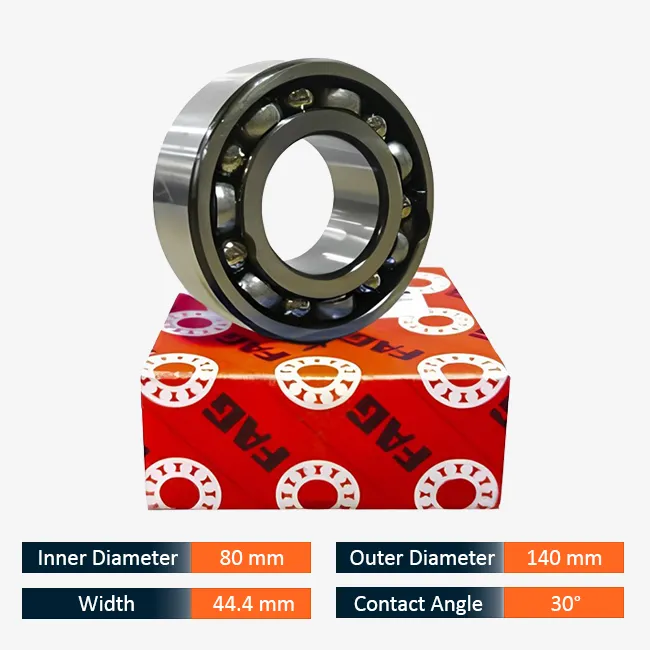

FAG double row angular contact ball bearing (3216-B-TVH) engineered for heavy radial and tilting moment loads. Dimensions: 80 mm ID x 140 mm OD x 44.4 mm Width, 30 Degree contact angle.
The FAG 3216-B-TVH is a large 80mm bore double row angular contact bearing designed for heavy machinery requiring high precision, dynamic reliability, and load capacity.
Key Features
Design: Rigid two-row construction engineered to handle severe radial and axial stress.
Cage Material: Polyamide cage (TVH).
Durability: Premium heat-treated steel for prolonged life.
Technical Specifications
Inner Diameter (ID)
80 mm
Outer Diameter (OD)
140 mm
Width (W)
44.4 mm
Contact Angle
30 Degree
Bearing Type
Double Row Angular Contact Ball Bearing
HSN Code
84822011
Applications
Extruders, heavy industrial pumps, rolling mills, cement processing machinery, and large drive units.
