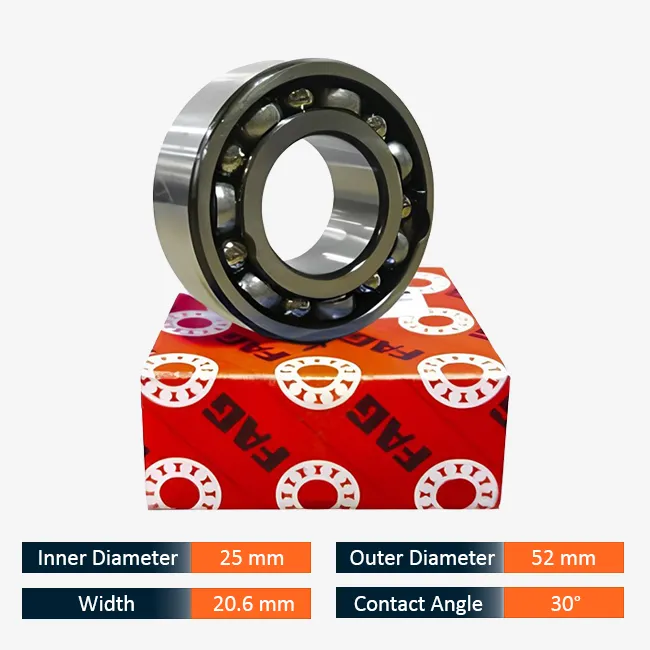

FAG double row angular contact ball bearing (3205-BD-XL-TVH-L285) engineered for combined radial and bidirectional axial loads. Dimensions: 25 mm ID x 52 mm OD x 20.6 mm Width, 30 Degree contact angle.
The FAG 3205-BD-XL-TVH-L285 is a high-performance double row angular contact ball bearing engineered to handle heavy radial and combined bidirectional thrust loads with exceptional accuracy.
Key Features
Design: Double row angular contact layout for high tilting stiffness.
Cage Material: Polyamide (TVH) cage for low friction and noise dampening.
X-life Quality: Higher load capacity and significantly longer operational life.
Technical Specifications
Inner Diameter (ID)
25 mm
Outer Diameter (OD)
52 mm
Width (W)
20.6 mm
Contact Angle
30 Degree
Bearing Type
Double Row Angular Contact Ball Bearing
HSN Code
84822011
Applications
Suitable for pumps, compressors, blowers, CNC spindles, power tools, and industrial drives.
