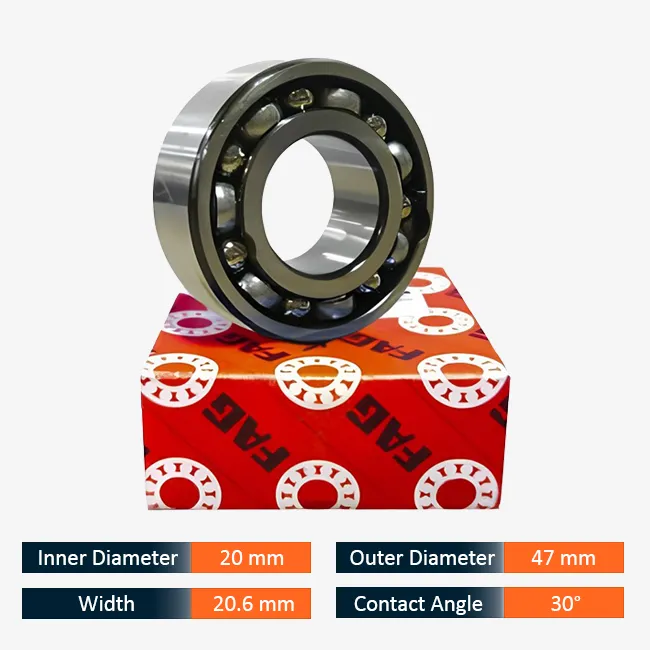

FAG double row angular contact ball bearing (3204-BD-XL-TVH-L285) engineered for combined radial and bidirectional axial loads. Dimensions: 20 mm ID x 47 mm OD x 20.6 mm Width, 30 Degree contact angle.
The FAG 3204-BD-XL-TVH-L285 is a premium double row angular contact ball bearing designed to accommodate simultaneous high radial loads and axial loads in both directions. Built to X-life standards, it delivers superior running smoothness, reduced friction, and extended service life.
Key Features
Design: Double row angular contact with rigid back-to-back arrangement.
Performance: Enhanced load ratings and optimized raceway geometry.
Technical Specifications
Inner Diameter (ID)
20 mm
Outer Diameter (OD)
47 mm
Width (W)
20.6 mm
Contact Angle
30 Degree
Bearing Type
Double Row Angular Contact Ball Bearing
HSN Code
84822011
Applications
Widely used in industrial gearboxes, centrifugal pumps, agricultural machinery, compressors, electric motors, and general industrial transmission equipment.
