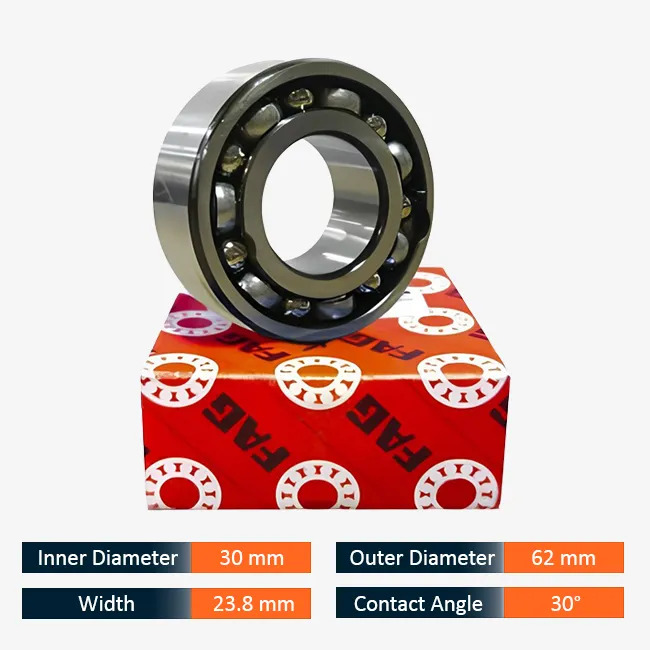

3206-BD-XL-TVH-L285 FAG Double Row Angular Contact Ball Bearing
was
₹3,116.00
Special Price
₹2,125.11
FAG double row angular contact ball bearing (3206-BD-XL-TVH-L285) engineered for combined radial and bidirectional axial loads. Dimensions: 30 mm ID x 62 mm OD x 23.8 mm Width, 30 Degree contact angle.
Availability:
In stock
SKU
FAG-3206-BD-XL-TVH-L285
Product Overview
The FAG 3206-BD-XL-TVH-L285 double row angular contact ball bearing offers robust performance for compact assemblies requiring high rigidity and dual-direction axial guidance.
Key Features
- Design: Rigid dual raceway construction resisting moment and thrust loads.
- Cage Material: Snap-type polyamide (TVH) cage.
- Efficiency: Low torque losses and reduced operating temperatures.
Technical Specifications
| Inner Diameter (ID) | 30 mm |
| Outer Diameter (OD) | 62 mm |
| Width (W) | 23.8 mm |
| Contact Angle | 30 Degree |
| Bearing Type | Double Row Angular Contact Ball Bearing |
| HSN Code | 84822011 |
Applications
Ideal for agricultural equipment, material handling machinery, gear reducers, and high-speed motor drives.
| Brand | FAG |
|---|---|
| Inner Diameter | 30 mm |
| Outer Diameter | 62 mm |
| Width | 23.8 mm |
| Contact Angle | 30 Degree |
