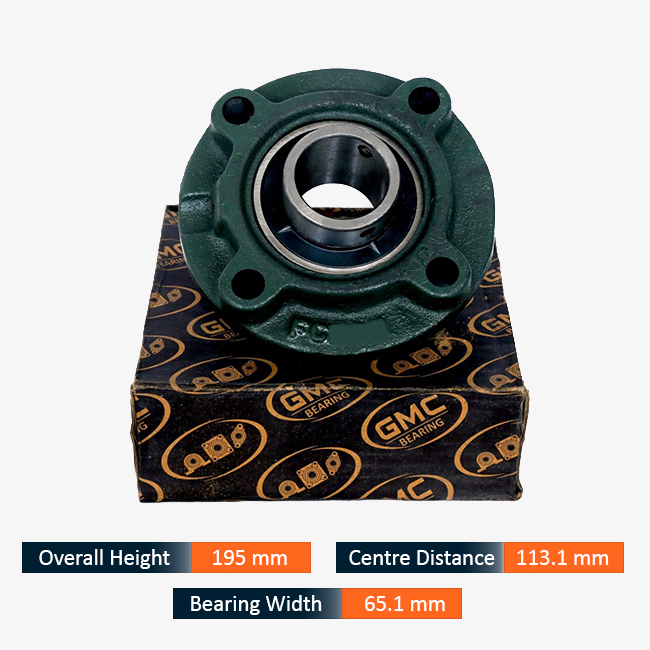

GMC UCFC 212 Round Flange Bearing Unit (60mm Bore x 195mm Height x 113.1mm Bolt Center x 65.1mm Width)

was ₹2,073.60 Special Price ₹1,425.60
GMC UCFC 212 round flange bearing unit with 60 mm bore for conveyors and industrial machinery
Complete unit with housing and insert bearing: 195 mm height, 113.1 mm bolt centre, 65.1 mm width
Standard UCFC 212 size; match the 60 mm bore to your shaft and the bolt pattern to your frame
Availability:
In stock
SKU
GMC-UCFC-212

GMC UCFC 212 Round Flange Bearing Unit (60mm Bore x 195mm Height x 113.1mm Bolt Center x 65.1mm Width)

The GMC UCFC 212 Round Flange Bearing Unit provides high load support for 60 mm rotating shafts.

This product is part of the GMC UCFC Round Flange Cartridge Pillow Block Bearing Unit with Housing (20mm - 75mm Bore) range: Inner Diameter 60 mm.

The GMC UCFC Round Flange Bearing Series offers GMC 4-bolt round cartridge units from 20 mm to 75 mm.

Key Features of the GMC UCFC 212 Round Flange Bearing Unit (60mm Bore x 195mm Height x 113.1mm Bolt Center x 65.1mm Width)

  • Inner Diameter: 60 mm
  • Standard ISO dimensions for a correct fit
  • Smooth, reliable rotation under load
  • Easy replacement using the size designation

GMC UCFC 212 Round Flange Bearing Unit (60mm Bore x 195mm Height x 113.1mm Bolt Center x 65.1mm Width) Specifications

Parameter Value
Inner Diameter 60 mm
Brand GMC
Manufacturer GMC
Overall height 195 mm
Bolt hole centre distance 113.1 mm
Bearing width, total 65.1 mm
HSN Code 84832090
Model GMC UCFC 212
Height 195 mm
Pitch 113.1 mm
Width 65.1 mm
SKU GMC-UCFC-212

Available Options in this Range

Inner Diameter SKU
20 mm GMC-UCFC-204
25 mm GMC-UCFC-205
30 mm GMC-UCFC-206
35 mm GMC-UCFC-207
40 mm GMC-UCFC-208
45 mm GMC-UCFC-209
50 mm GMC-UCFC-210
55 mm GMC-UCFC-211
60 mm GMC-UCFC-212 This product
65 mm GMC-UCFC-213
70 mm GMC-UCFC-214
75 mm GMC-UCFC-215

Applications & Industries

  • Conveyor systems
  • Agricultural machinery
  • Packaging machines
  • Textile machinery
  • Pumps, fans and blowers
  • General industrial equipment

Benefits of the GMC UCFC 212 Round Flange Bearing Unit (60mm Bore x 195mm Height x 113.1mm Bolt Center x 65.1mm Width)

Features

Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.

Benefits

Smooth rotation, reliable load support and easy replacement using the standard size designation.

How to Choose the Right Option

  1. Confirm you need this option (Inner Diameter 60 mm) - compare it with the other options in the table above.
  2. Match the bore (inner diameter) to your shaft size.
  3. Check the outside diameter and width (or housing dimensions) against the mounting space.
  4. Copy the full designation, including any suffix, from the old bearing before ordering.
  5. Choose a sealed version where dust or moisture is present.

Why Choose Us

  • Ready stock with fast dispatch across India
  • Bulk pricing for industrial and B2B buyers
  • Quality-checked products for continuous industrial use
  • Expert support for product selection and compatibility
  • Trusted supplier for industrial laser spares and consumables

Frequently Asked Questions

Inner Diameter: 60 mm; Brand: GMC; Manufacturer: GMC; Overall height: 195 mm; Bolt hole centre distance: 113.1 mm; Bearing width, total: 65.1 mm; HSN Code: 84832090; Model: GMC UCFC 212; Height: 195 mm; Pitch: 113.1 mm; Width: 65.1 mm.

The range has 12 options. See the Available Options table on this page and choose the one that matches your requirement.

Read the designation on the old bearing, or measure the bore, outside diameter and width and match them to the options on this page.

The price depends on quantity. Bulk buyers can request a quote for the best pricing.

Yes, bulk quantities are available with competitive pricing and delivery across India.
