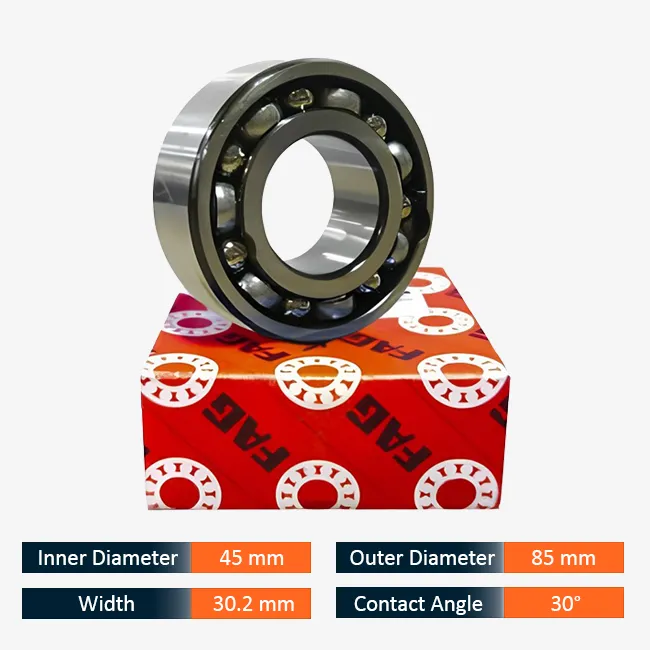

FAG double row angular contact ball bearing (3209-BD-XL-TVH-L285) engineered for combined radial and bidirectional axial loads. Dimensions: 45 mm ID x 85 mm OD x 30.2 mm Width, 30 Degree contact angle.
The FAG 3209-BD-XL-TVH-L285 delivers high-reliability performance for medium-to-heavy rotating systems requiring rigid axial control and high rotational speeds.
Key Features
Design: Double row raceway setup for symmetrical axial retention.
Cage Material: High-grade polyamide cage (TVH).
Reliability: X-life grade geometry for extended grease life.
Technical Specifications
Inner Diameter (ID)
45 mm
Outer Diameter (OD)
85 mm
Width (W)
30.2 mm
Contact Angle
30 Degree
Bearing Type
Double Row Angular Contact Ball Bearing
HSN Code
84822011
Applications
Centrifugal separators, textile machinery, electric motors, and general industrial gear units.
