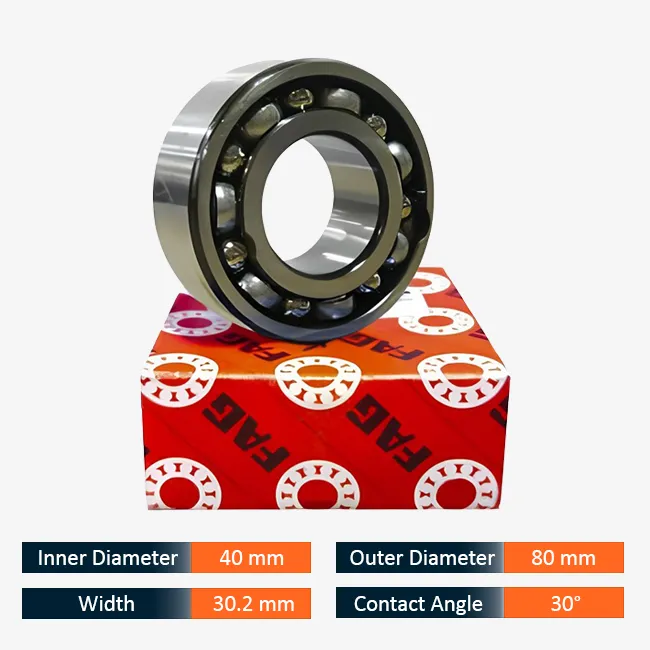

FAG double row angular contact ball bearing (3208-BD-XL-TVH-L285) engineered for combined radial and bidirectional axial loads. Dimensions: 40 mm ID x 80 mm OD x 30.2 mm Width, 30 Degree contact angle.
The FAG 3208-BD-XL-TVH-L285 provides superior radial stiffness and bidirectional axial load management, making it an essential component for demanding industrial drive mechanisms.
Key Features
Design: Compact two-row construction substituting paired single-row bearings.
Cage Material: Polyamide cage (TVH) for reduced inertia and smooth running.
Standards: Precision manufactured to international DIN/ISO tolerances.
Technical Specifications
Inner Diameter (ID)
40 mm
Outer Diameter (OD)
80 mm
Width (W)
30.2 mm
Contact Angle
30 Degree
Bearing Type
Double Row Angular Contact Ball Bearing
HSN Code
84822011
Applications
Heavy pumps, gearboxes, industrial elevators, and agricultural processing equipment.
