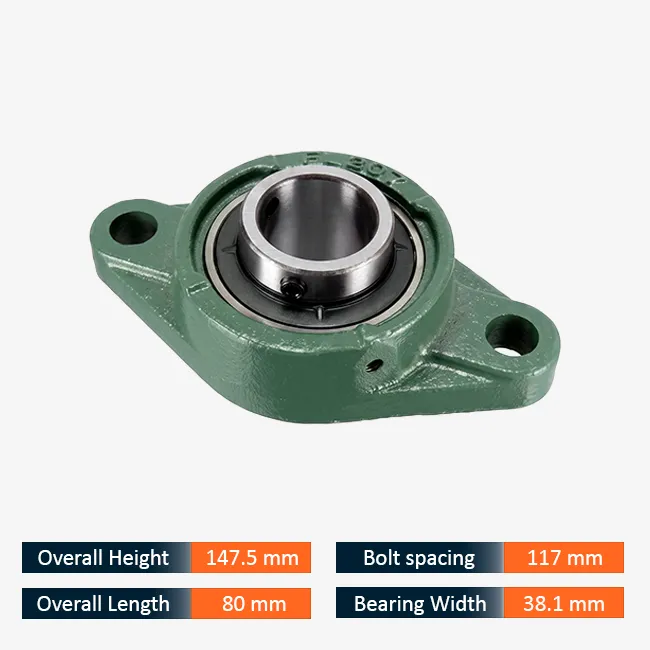

UCFL 206 Pillow Block Bearing Unit (30 mm Bore x 147.5 mm Height x 117 mm Bolt Distance x 38.1 mm Width)

was ₹486.40 Special Price ₹334.40
UCFL 206 pillow block bearing unit with 30 mm bore for conveyors and industrial machinery
Complete unit with housing and insert bearing: 147.5 mm height, 117 mm bolt distance, 38.1 mm width
Standard UCFL 206 size; match the 30 mm bore to your shaft and the bolt pattern to your frame
Availability:
In stock
SKU
UCFL-206

UCFL 206 Pillow Block Bearing Unit (30 mm Bore x 147.5 mm Height x 117 mm Bolt Distance x 38.1 mm Width)

The UCFL 206 Pillow Block Bearing Unit provides high load support and dual set-screw locking for 30 mm drive shafts.

This product is part of the UCFL Cartridge Pillow Block Bearing Unit with Housing (20mm - 75mm Bore) range: Inner Diameter 30 mm.

The UCFL Pillow Block Bearing Series offers cast iron pillow block mounted units across shaft sizes from 20 mm to 75 mm.

Key Features of the UCFL 206 Pillow Block Bearing Unit (30 mm Bore x 147.5 mm Height x 117 mm Bolt Distance x 38.1 mm Width)

  • Inner Diameter: 30 mm
  • Standard ISO dimensions for a correct fit
  • Smooth, reliable rotation under load
  • Easy replacement using the size designation

UCFL 206 Pillow Block Bearing Unit (30 mm Bore x 147.5 mm Height x 117 mm Bolt Distance x 38.1 mm Width) Specifications

Parameter Value
Inner Diameter 30 mm
Overall height 147.5 mm
Distance between bolts 117 mm
Bearing width, total 38.1 mm
Housing Material Cast Iron
HSN Code 84832090
Model UCFL 206
Overall length 80 mm
SKU UCFL-206

Available Options in this Range

Inner Diameter SKU
20 mm UCFL-204
25 mm UCFL-205
30 mm UCFL-206 This product
35 mm UCFL-207
40 mm UCFL-208
45 mm UCFL-209
50 mm UCFL-210
55 mm UCFL-211
60 mm UCFL-212
65 mm UCFL-213
70 mm UCFL-214
75 mm UCFL-215

Applications & Industries

  • Conveyor systems
  • Agricultural machinery
  • Packaging machines
  • Textile machinery
  • Pumps, fans and blowers
  • General industrial equipment

Benefits of the UCFL 206 Pillow Block Bearing Unit (30 mm Bore x 147.5 mm Height x 117 mm Bolt Distance x 38.1 mm Width)

Features

Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.

Benefits

Smooth rotation, reliable load support and easy replacement using the standard size designation.

How to Choose the Right Option

  1. Confirm you need this option (Inner Diameter 30 mm) - compare it with the other options in the table above.
  2. Match the bore (inner diameter) to your shaft size.
  3. Check the outside diameter and width (or housing dimensions) against the mounting space.
  4. Copy the full designation, including any suffix, from the old bearing before ordering.
  5. Choose a sealed version where dust or moisture is present.

Why Choose Us

  • Ready stock with fast dispatch across India
  • Bulk pricing for industrial and B2B buyers
  • Quality-checked products for continuous industrial use
  • Expert support for product selection and compatibility
  • Trusted supplier for industrial laser spares and consumables

Frequently Asked Questions

Inner Diameter: 30 mm; Overall height: 147.5 mm; Distance between bolts: 117 mm; Bearing width, total: 38.1 mm; Housing Material: Cast Iron; HSN Code: 84832090; Model: UCFL 206; Overall length: 80 mm.

The range has 12 options. See the Available Options table on this page and choose the one that matches your requirement.

Read the designation on the old bearing, or measure the bore, outside diameter and width and match them to the options on this page.

The price depends on quantity. Bulk buyers can request a quote for the best pricing.

Yes, bulk quantities are available with competitive pricing and delivery across India.
