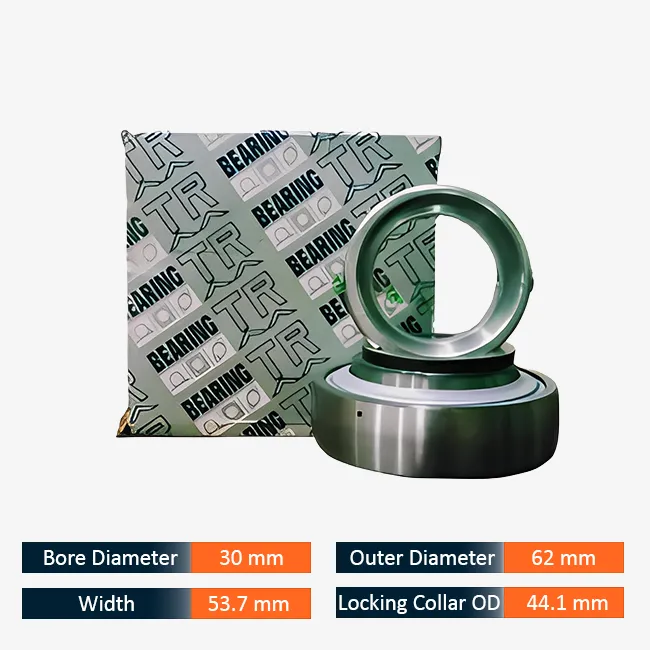

The TR NA 206 Insert Bearing provides reliable shaft support in pillow blocks and flanged units, equipped with an eccentric locking collar for fast and stable mounting.
This product is part of the TR NA Insert Bearing range: Inner Diameter 30 mm, Outer Diameter 62 mm, Width 53.7 mm, Locking Collar Outer Diameter 44.1 mm.
The TR NA insert bearing is built for equipment that is fabricated rather than precision-machined: conveyor frames, fan and blower shafts, farm implements, drive shafts on packaging and processing lines. Instead of relying on an interference fit, it grips the shaft with a collar on its extended inner ring, and instead of needing a bored cylindrical seat, its convex outer ring settles into a matching spherical housing. Between them, those two features remove most of the workshop preparation that a conventional bearing demands. The series covers five bore sizes - NA 205, NA 206, NA 207, NA 208 and NA 210 - spanning 25 mm to 50 mm shafts.
Each bearing in the series arrives greased and sealed on both faces, so it goes into service as it comes out of the box. The inner ring is longer than the outer ring, and that extension does two jobs at once - it carries the locking collar, and it spreads the clamping grip along more shaft length than a plain bore could manage. The outer ring is ground convex so it can swivel a small amount inside the housing seat, which is what allows two housings bolted to a slightly uneven frame to still run a shaft without edge-loading the raceways. The series is listed for material handling, agricultural machinery, fans and blowers, packaging lines, grain handling, textile and food processing plant, crushers and wastewater equipment.
| Parameter | Value |
|---|---|
| Inner Diameter | 30 mm |
| Outer Diameter | 62 mm |
| Width | 53.7 mm |
| Locking Collar Outer Diameter | 44.1 mm |
| Brand | TR |
| Manufacturer | TR |
| Bore Diameter (ID) | 30 mm |
| Outside Diameter (OD) | 62 mm |
| Overall Bearing Width | 53.7 mm |
| Locking Collar OD | 44.1 mm |
| Bearing Type | Insert Bearing with Locking Collar |
| HSN Code | 84831090 |
| Model | TR NA 206 |
| Bore, Outside Diameter and Width | 30 mm bore, 62 mm OD, 53.7 mm width |
| SKU | TR-BRG-NA-206 |
| Inner Diameter | Outer Diameter | Width | Locking Collar Outer Diameter | SKU | |
|---|---|---|---|---|---|
| 25 mm | 52 mm | 31 mm | 37.4 mm | TR-BRG-NA-205 | |
| 30 mm | 62 mm | 53.7 mm | 44.1 mm | TR-BRG-NA-206 | This product |
| 35 mm | 72 mm | 38.9 mm | 51.1 mm | TR-BRG-NA-207 | |
| 40 mm | 80 mm | 43.2 mm | 56.5 mm | TR-BRG-NA-208 | |
| 50 mm | 90 mm | 43.7 mm | 68.2 mm | TR-BRG-NA-210 |
Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.
Smooth rotation, reliable load support and easy replacement using the standard size designation.
| Point of Difference | TR NA - Locking Collar | Set Screw Type |
|---|---|---|
| How the shaft is gripped | Collar locks against the extended inner ring and clamps around the shaft | Grub screws bite into the shaft surface at one or two points |
| Shaft after removal | Left largely unmarked, so the seat can be reused | Carries indentation marks where the screws bit in |
| Under sustained vibration | Running torque helps hold the lock, once set in the running direction | Screws can back off over time and need periodic checking |
| Direction of shaft rotation | Set around one running direction - ask us if your shaft reverses | Works with rotation either way |
| Fitting and removal | Collar turned by hand or with a drift, then locked with a grub screw | Hex key only - the quickest of the two to release |
| Typical use | Conveyors, fans, farm and processing equipment running one way | Light duty and equipment that is dismantled frequently |
Inner Diameter: 30 mm; Outer Diameter: 62 mm; Width: 53.7 mm; Locking Collar Outer Diameter: 44.1 mm; Brand: TR; Manufacturer: TR; Bore Diameter (ID): 30 mm; Outside Diameter (OD): 62 mm; Overall Bearing Width: 53.7 mm; Locking Collar OD: 44.1 mm; Bearing Type: Insert Bearing with Locking Collar; HSN Code: 84831090; Model: TR NA 206; Bore, Outside Diameter and Width: 30 mm bore, 62 mm OD, 53.7 mm width.
The range has 5 options. See the Available Options table on this page and choose the one that matches your requirement.
Quick answer: It is the collar-locking type of mounted ball bearing - the kind you fit to a plain shaft with a drift and a hex key rather than a press. Mechanically it is a single-row ball bearing altered for direct mounting. The outer ring is ground convex so it can settle into a matching housing seat, the inner ring runs longer than the outer to carry the collar that clamps it to the shaft, and both faces are sealed at the factory. The same component appears in other catalogues as a Y-bearing or a mounted bearing insert, so those terms describe the same part.
Quick answer: 25 mm takes the NA 205, 30 mm the NA 206, 35 mm the NA 207, 40 mm the NA 208 and 50 mm the NA 210. Measure the shaft at the exact seat where the bearing will sit, then read the model off the bore. Before ordering, confirm the outside diameter against your housing and check that the collar has room to be turned. If your shaft measures between two sizes, it has probably worn - send the reading over rather than rounding it.
Quick answer: The last two digits are the bore code - multiply by five from size 04 upwards, so 06 means a 30 mm bore. TR is the brand and NA identifies the locking-collar series. The bore code is an industry-wide convention, which is why an NA 206 and a 206 housing are designed to work together. It applies across the series: 205 is 25 mm, 207 is 35 mm, 208 is 40 mm and 210 is 50 mm.
Quick answer: A standard bearing needs a machined shaft seat, a press fit and a bored cylindrical housing. An insert bearing needs none of the three. The insert version clamps to ordinary commercial shafting with its collar, drops into a spherical housing seat, takes up mounting misalignment, and comes sealed and greased. What it gives up is duty - standard bearings are available in higher precision grades for higher speeds and for machined assemblies such as gearboxes and motors.
Quick answer: It needs a housing with a spherical seat, sized to the same bore and outside diameter - pillow block, flange, take-up or cartridge. The housing seat has to be concave to match the convex outer ring, which is what allows the bearing to align itself. Sizing is by bore and outside diameter together: 52 mm for the NA 205, 62 mm for the NA 206, 72 mm for the NA 207, 80 mm for the NA 208 and 90 mm for the NA 210. Because bolt spacing and base dimensions differ between manufacturers, send us your housing measurements and we will check the match against what you already have.
Quick answer: It corrects mounting misalignment at assembly. It does not correct a shaft that flexes while running or a shaft that is bent. When two housings sit on a frame that is not perfectly true, the shaft no longer passes through both on a common axis. The spherical outer ring lets each bearing rotate slightly in its seat until it lines up, so the raceway loads evenly rather than on one edge. That adjustment is made once and then held - it is not a continuous compensation. For misalignment that persists in service, a self-aligning ball bearing with two ball rows is the correct design.
