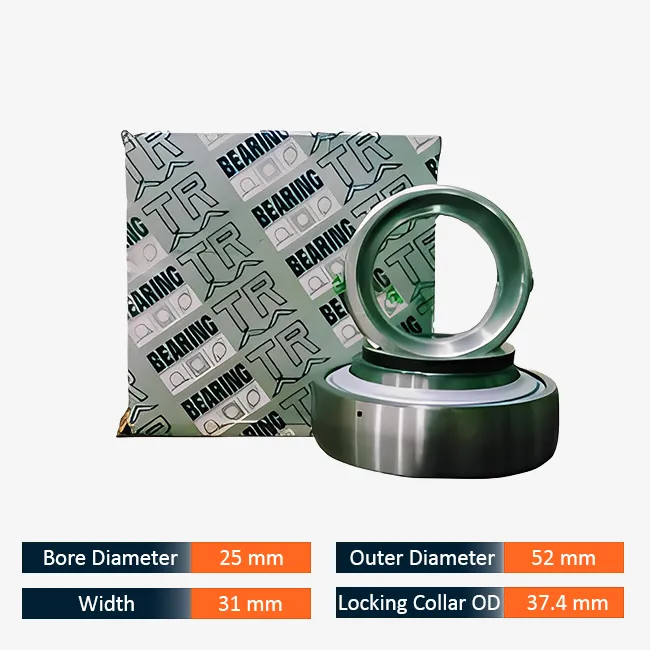

TR NA 205 insert bearing with eccentric locking collar. Dimensions: 25 mm bore diameter, 52 mm outside diameter, 31 mm overall width, and 37.4 mm locking collar OD.
The TR NA 205 Insert Bearing is engineered for mounted housing applications, featuring an eccentric locking collar mechanism for secure, slip-free shaft attachment. Designed to handle steady radial loads in demanding industrial machinery.
Key Features
Locking Mechanism: Eccentric locking collar for positive shaft gripping.
Sealing: Built-in contact seals to prevent contamination and retain lubricant.
Alignment: Spherical outer ring profile for self-aligning mounted operations.
Technical Specifications
Bore Diameter (ID)
25 mm
Outside Diameter (OD)
52 mm
Overall Bearing Width
31 mm
Locking Collar OD
37.4 mm
Bearing Type
Insert Bearing with Locking Collar
HSN Code
84831090
Applications
Ideal for agricultural machinery, conveyors, textile processing plants, food processing units, and industrial fan assemblies.
