MAX H9.5 Protective Cap with 9.6mm height and 13mm diameter, suitable as a replacement protective component for compatible MAX fiber laser source applications.
MAX H9.5 Protective Cap for Fiber Laser Source Output Connector

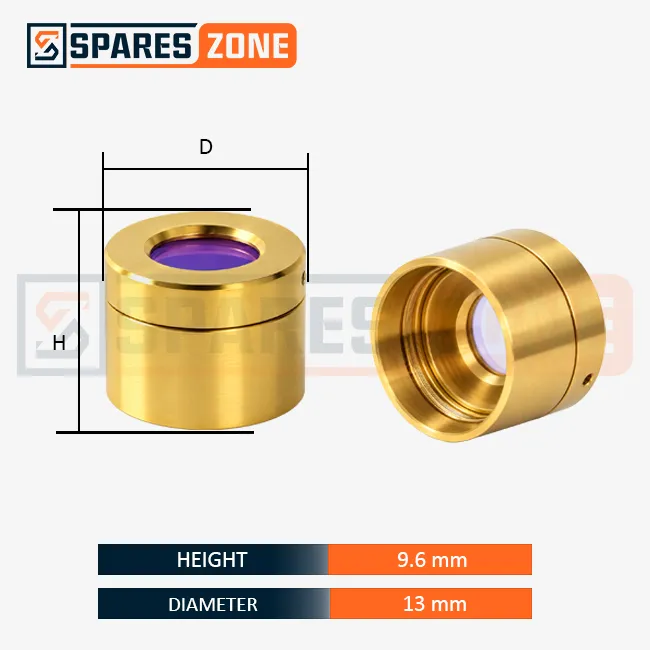

The MAX H9.5 Protective Cap is a QBH-style output-connector end cap sized at 9.6mm height x 13mm diameter, made for the output port of compatible MAX-series fiber laser sources. It covers the collimating window at the connector, keeping dust and contamination off it whenever the output optical cable is disconnected.
On a fiber laser source, the output connector is where the delivery cable plugs in, and it carries a collimating window right behind that connection point. That window has to stay clean, since even light dust or contamination on it can degrade beam quality or cause localized heating during operation. The H9.5 cap sits over this connector whenever the cable is unplugged - during transport, storage, or maintenance - so the window is not left exposed to the surrounding shop-floor air. It is a low-cost part compared to the window or collimator behind it, and is meant to be checked and replaced if it becomes damaged or goes missing.
Key Features of the MAX H9.5 Protective Cap
Sized for the H9.5 output-connector cap standard - 9.6mm height x 13mm diameter
Fits MAX-series fiber laser source output connectors using this cap size
Shields the collimating window when the output cable is disconnected
Low-cost part, easy to inspect and replace if lost or damaged
A precisely sized end cap built to the H9.5 dimension, made to sit directly over the output connector of compatible MAX fiber laser sources without modification.
Benefits
Keeps the collimating window at the source's output connector protected from dust and contamination, and keeps replacement quick and predictable for maintenance teams.
How to Confirm You Need the H9.5 Size
Check your laser source brand and model against the MAX H-series range.
Measure the existing cap or connector recess: it should read close to 9.6mm height x 13mm diameter.
Compare against other MAX cap variants (L, HH, HHH) if your reading is different.
Inspect the current cap for cracking, warping or missing seals before ordering.
Order from a supplier who can confirm fitment before dispatch.
Why Choose Us
Correctly sized to the H9.5 standard - not an approximate fit
Ready stock to reduce laser source downtime
GST-registered supplier (GSTIN 24AFSFS3212F1Z2) with proper invoicing
Support on WhatsApp to confirm the right cap size for your source
Bulk pricing available for units running multiple machines
Correctly Sized H9.5 Cap vs an Approximate-Fit Cap
Parameter
Correctly Sized H9.5 Cap
Approximate / Mismatched Cap
Dimension Match
9.6mm x 13mm, exact
Close but not exact
Seating on Connector
Sits flush, no gap
Loose fit or forced fit
Window Protection
Consistent dust seal
Gaps can let dust through
Replacement Ease
Drop-in swap
May need adjustment
Frequently Asked Questions
It covers the output connector of a compatible MAX fiber laser source, protecting the collimating window inside from dust and contamination whenever the output cable is disconnected.
9.6mm height x 13mm diameter, built to the H9.5 mounting standard.
The laser source. It caps the source's output connector, not the cutting head nozzle.
Replace it if it is cracked, warped, or lost, since an uncovered connector leaves the collimating window exposed to dust.
Yes, bulk quantities are available with a GST invoice for business buyers.
Get the Right MAX H9.5 Protective Cap for Your Laser Source
Confirm fitment and order the correctly sized MAX H9.5 output-connector protective cap for your fiber laser source, with bulk pricing and pan-India delivery.
