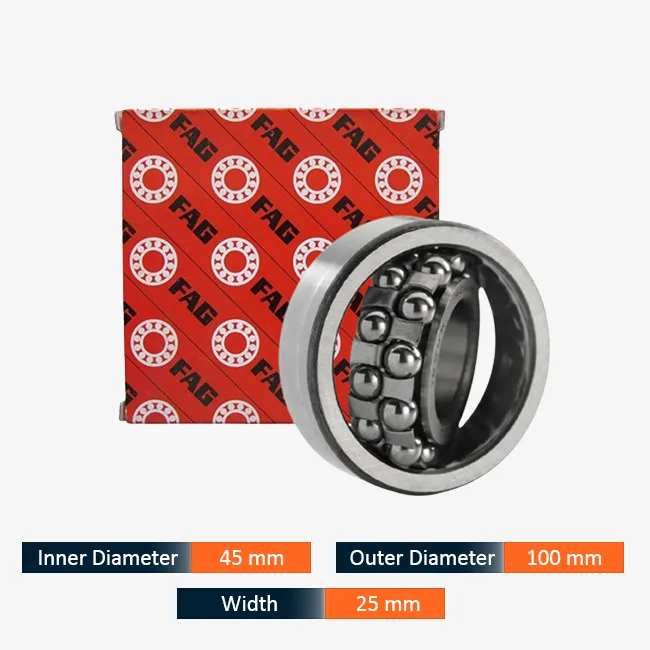

The FAG 1309 TVH Self-Aligning Ball Bearing accommodates misalignment in high-capacity 45mm shaft systems with minimal maintenance requirements.
This product is part of the FAG TVH Self-Aligning Ball Bearings range: Inner Diameter 45 mm, Outer Diameter 100 mm, Width 25 mm.
This listing carries the complete FAG TVH programme of self-aligning ball bearings under a single SKU, FAG-TVH. Pick your designation and the bore, outside diameter and width follow automatically - there is no separate part to hunt for. Every variant here shares the same execution: a cylindrical bore, two rows of balls running on one spherical outer raceway, and the TVH cage, which is a one-piece window cage moulded from glass-fibre reinforced polyamide 66 and guided by the balls themselves. What changes between variants is the envelope. What does not change is the engineering, and that is what the rest of this page is about.
| Parameter | Value |
|---|---|
| Inner Diameter | 45 mm |
| Outer Diameter | 100 mm |
| Width | 25 mm |
| Brand | FAG |
| Manufacturer | FAG |
| Bore Diameter (ID) | 45 mm |
| Outside Diameter (OD) | 100 mm |
| Width (W) | 25 mm |
| Cage Material | Polyamide (TVH) |
| HSN Code | 84822011 |
| SKU | FAG-1309-TVH |
| Inner Diameter | Outer Diameter | Width | SKU | |
|---|---|---|---|---|
| 25 mm | 62 mm | 24 mm | FAG-2305-TVH | |
| 25 mm | 62 mm | 17 mm | FAG-1305-TVH | |
| 30 mm | 72 mm | 19 mm | FAG-1306-TVH | |
| 30 mm | 72 mm | 27 mm | FAG-2306-TVH | |
| 30 mm | 62 mm | 16 mm | FAG-1206-TVH | |
| 30 mm | 62 mm | 20 mm | FAG-2206-TVH | |
| 35 mm | 72 mm | 17 mm | FAG-1207-TVH | |
| 35 mm | 80 mm | 21 mm | FAG-1307-TVH | |
| 35 mm | 80 mm | 31 mm | FAG-2307-TVH | |
| 35 mm | 72 mm | 23 mm | FAG-2207-TVH | |
| 40 mm | 80 mm | 23 mm | FAG-2208-TVH | |
| 40 mm | 80 mm | 18 mm | FAG-1908-TVH | |
| 40 mm | 90 mm | 23 mm | FAG-1308-TVH | |
| 40 mm | 90 mm | 33 mm | FAG-2308-TVH | |
| 45 mm | 85 mm | 23 mm | FAG-2209-TVH | |
| 45 mm | 100 mm | 25 mm | FAG-1309-TVH | This product |
| 45 mm | 100 mm | 36 mm | FAG-2309-TVH | |
| 45 mm | 85 mm | 19 mm | FAG-1290-TVH | |
| 50 mm | 110 mm | 27 mm | FAG-1310-TVH | |
| 50 mm | 110 mm | 40 mm | FAG-2310-TVH | |
| 50 mm | 90 mm | 23 mm | FAG-2210-TVH | |
| 50 mm | 90 mm | 20 mm | FAG-1910-TVH | |
| 55 mm | 100 mm | 21 mm | FAG-1211-TVH | |
| 55 mm | 100 mm | 25 mm | FAG-2211-TVH | |
| 55 mm | 120 mm | 43 mm | FAG-2311-TVH | |
| 55 mm | 120 mm | 29 mm | FAG-1311-TVH | |
| 60 mm | 110 mm | 28 mm | FAG-2212-TVH | |
| 60 mm | 130 mm | 46 mm | FAG-2312-TVH | |
| 60 mm | 110 mm | 22 mm | FAG-1912-TVH | |
| 60 mm | 130 mm | 31 mm | FAG-1312-TVH |
Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.
Smooth rotation, reliable load support and easy replacement using the standard size designation.
| Property | TVH - Polyamide | Pressed Steel | Machined Brass |
|---|---|---|---|
| Construction | One-piece moulded window cage | Two stamped halves, riveted | Machined from solid |
| Mass | Lowest | Low | Highest |
| Temperature ceiling | Around 120 °C continuous | Well above the grease limit | Highest of the three |
| Running noise | Quietest - the material damps | Moderate | Moderate |
| Start-stop and vibration | Excellent - low inertia, elastic | Rivets are the weak point | Excellent, but heavy |
| Aggressive EP oil additives | Ages the material - check compatibility | Unaffected | Unaffected |
Inner Diameter: 45 mm; Outer Diameter: 100 mm; Width: 25 mm; Brand: FAG; Manufacturer: FAG; Bore Diameter (ID): 45 mm; Outside Diameter (OD): 100 mm; Width (W): 25 mm; Cage Material: Polyamide (TVH); HSN Code: 84822011.
The range has 51 options. See the Available Options table on this page and choose the one that matches your requirement.
It identifies the cage execution on a FAG self-aligning ball bearing - a one-piece window cage injection moulded from glass-fibre reinforced polyamide 66 and guided by the balls rather than by a ring land. It tells you nothing about the size; the digits in front of it do that.
Below the cage's ceiling of roughly 120 °C, not the 150 °C many shop heaters default to. If that does not open the bore enough for your interference fit, the fit is tighter than it should be - check the shaft tolerance rather than reaching for more heat.
A general-purpose lithium-complex NLGI 2 covers most installations at ordinary speeds and temperatures. Confirm additive compatibility with the polyamide cage before specifying an aggressive extreme-pressure grease, and never mix thickener types in the same housing.
The ring that rotates relative to the load direction needs an interference fit - on a normal drive that is the inner ring, and k5 or k6 is the usual starting point, with H7 in the housing. Heavy shock, hollow shafts and high temperatures all change the recommendation, so confirm against the published fit table for your size.
No. Removal drives load through the ball set and dents the raceways even when nothing is visible. The damage surfaces as noise a few weeks after the machine goes back into service, by which time the cause is no longer obvious.
Measure it. Bore, outside diameter and width taken with a vernier identify a single part within this range, because no two variants share all three dimensions. Send those three numbers and we will name the designation.
Looking for a reliable supplier of the 1309 TVH Self-Aligning Ball Bearing FAG in India? Get bulk pricing, fast delivery and expert support. Contact us today for the best deal.
Request Quote| Brand | FAG |
|---|---|
| Inner Diameter | 45 mm |
| Outer Diameter | 100 mm |
| Width | 25 mm |
