1290 TVH Self-Aligning Ball Bearing FAG

was ₹2,811.00 Special Price ₹1,917.10

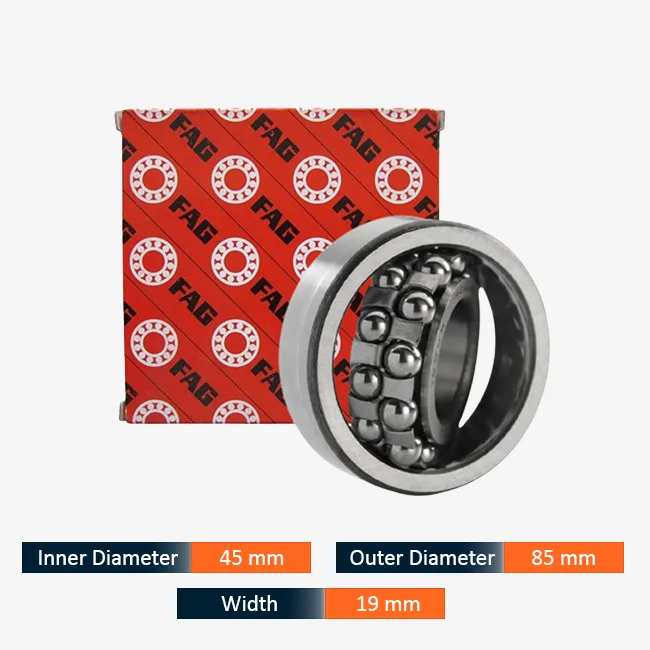

FAG 1290 TVH self-aligning ball bearing, 45 mm bore x 85 mm OD x 19 mm width
Two rows of balls in a polyamide cage; the self-aligning design tolerates shaft misalignment
Standard 1290 size for pumps, fans, conveyors and general industrial machinery
Availability:
In stock
SKU
FAG-1290-TVH

1290 TVH Self-Aligning Ball Bearing FAG

The FAG 1290 TVH Self-Aligning Ball Bearing offers precision alignment and low friction rotation for 45mm shaft assemblies.

This product is part of the FAG TVH Self-Aligning Ball Bearings range: Inner Diameter 45 mm, Outer Diameter 85 mm, Width 19 mm.

This listing carries the complete FAG TVH programme of self-aligning ball bearings under a single SKU, FAG-TVH. Pick your designation and the bore, outside diameter and width follow automatically - there is no separate part to hunt for. Every variant here shares the same execution: a cylindrical bore, two rows of balls running on one spherical outer raceway, and the TVH cage, which is a one-piece window cage moulded from glass-fibre reinforced polyamide 66 and guided by the balls themselves. What changes between variants is the envelope. What does not change is the engineering, and that is what the rest of this page is about.

Key Features of the 1290 TVH Self-Aligning Ball Bearing FAG

  • Inner Diameter: 45 mm
  • Outer Diameter: 85 mm
  • Width: 19 mm
  • Self-aligning spherical outer raceway.
  • Glass-fibre reinforced polyamide (TVH) cage.
  • High-speed capability with minimal heat generation.
  • Standard ISO dimensions for a correct fit
  • Smooth, reliable rotation under load
  • Easy replacement using the size designation

1290 TVH Self-Aligning Ball Bearing FAG Specifications

Parameter Value
Inner Diameter 45 mm
Outer Diameter 85 mm
Width 19 mm
Brand FAG
Manufacturer FAG
Bore Diameter (ID) 45 mm
Outside Diameter (OD) 85 mm
Width (W) 19 mm
Cage Material Polyamide (TVH)
HSN Code 84822011
SKU FAG-1290-TVH

Available Options in this Range

Inner Diameter Outer Diameter Width SKU
30 mm 72 mm 19 mm FAG-1306-TVH
30 mm 72 mm 27 mm FAG-2306-TVH
30 mm 62 mm 16 mm FAG-1206-TVH
30 mm 62 mm 20 mm FAG-2206-TVH
35 mm 72 mm 17 mm FAG-1207-TVH
35 mm 80 mm 21 mm FAG-1307-TVH
35 mm 80 mm 31 mm FAG-2307-TVH
35 mm 72 mm 23 mm FAG-2207-TVH
40 mm 80 mm 23 mm FAG-2208-TVH
40 mm 80 mm 18 mm FAG-1908-TVH
40 mm 90 mm 23 mm FAG-1308-TVH
40 mm 90 mm 33 mm FAG-2308-TVH
45 mm 85 mm 23 mm FAG-2209-TVH
45 mm 100 mm 25 mm FAG-1309-TVH
45 mm 100 mm 36 mm FAG-2309-TVH
45 mm 85 mm 19 mm FAG-1290-TVH This product
50 mm 110 mm 27 mm FAG-1310-TVH
50 mm 110 mm 40 mm FAG-2310-TVH
50 mm 90 mm 23 mm FAG-2210-TVH
50 mm 90 mm 20 mm FAG-1910-TVH
55 mm 100 mm 21 mm FAG-1211-TVH
55 mm 100 mm 25 mm FAG-2211-TVH
55 mm 120 mm 43 mm FAG-2311-TVH
55 mm 120 mm 29 mm FAG-1311-TVH
60 mm 110 mm 28 mm FAG-2212-TVH
60 mm 130 mm 46 mm FAG-2312-TVH
60 mm 110 mm 22 mm FAG-1912-TVH
60 mm 130 mm 31 mm FAG-1312-TVH
65 mm 140 mm 33 mm FAG-1313-TVH
65 mm 120 mm 23 mm FAG-1213-TVH

Applications & Industries

  • Conveyor systems
  • Agricultural machinery
  • Packaging machines
  • Textile machinery
  • Pumps, fans and blowers
  • General industrial equipment

Benefits of the 1290 TVH Self-Aligning Ball Bearing FAG

Features

Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.

Benefits

Smooth rotation, reliable load support and easy replacement using the standard size designation.

How to Choose the Right Option

  1. Confirm you need this option (Inner Diameter 45 mm, Outer Diameter 85 mm, Width 19 mm) - compare it with the other options in the table above.
  2. Match the bore (inner diameter) to your shaft size.
  3. Check the outside diameter and width (or housing dimensions) against the mounting space.
  4. Copy the full designation, including any suffix, from the old bearing before ordering.
  5. Choose a sealed version where dust or moisture is present.

Why Choose Us

  • Genuine FAG across the whole programme Every variant under this SKU is FAG. You are not matching one manufacturer's bearing at one position against another's at the next and hoping the internals agree.
  • The full bore range on one page 20 mm to 100 mm in 5 mm steps. Machines that use three or four different bores can be covered in one order rather than four separate ones.
  • Designation help before the order, not after Send a photograph of the etched face, or the three vernier readings, and we will confirm the designation with you. If the right answer is an execution we do not stock, or a different bearing type altogether, we will tell you that.
  • Proper GST documentation Invoiced with GST under HSN 84822011. GSTIN 24AFSFS3212F1Z2, Ahmedabad, Gujarat - the details your accounts team needs for input credit, on the invoice from the start.
  • Bulk quantities at a discounted rate Maintenance stores holding several positions of the same size, and OEMs building in quantity, are quoted at a bulk rate. Send the designations and quantities together.
  • Beyond this listing The FAG self-aligning programme continues past 100 mm bore and includes tapered-bore K executions, C3 clearance and alternative cage materials. If what you need is outside this SKU, ask before assuming it is unavailable.

1290 TVH Self-Aligning Ball Bearing FAG Comparison

Property TVH - Polyamide Pressed Steel Machined Brass
Construction One-piece moulded window cage Two stamped halves, riveted Machined from solid
Mass Lowest Low Highest
Temperature ceiling Around 120 °C continuous Well above the grease limit Highest of the three
Running noise Quietest - the material damps Moderate Moderate
Start-stop and vibration Excellent - low inertia, elastic Rivets are the weak point Excellent, but heavy
Aggressive EP oil additives Ages the material - check compatibility Unaffected Unaffected

Frequently Asked Questions

Inner Diameter: 45 mm; Outer Diameter: 85 mm; Width: 19 mm; Brand: FAG; Manufacturer: FAG; Bore Diameter (ID): 45 mm; Outside Diameter (OD): 85 mm; Width (W): 19 mm; Cage Material: Polyamide (TVH); HSN Code: 84822011.

The range has 51 options. See the Available Options table on this page and choose the one that matches your requirement.

It identifies the cage execution on a FAG self-aligning ball bearing - a one-piece window cage injection moulded from glass-fibre reinforced polyamide 66 and guided by the balls rather than by a ring land. It tells you nothing about the size; the digits in front of it do that.

Below the cage's ceiling of roughly 120 °C, not the 150 °C many shop heaters default to. If that does not open the bore enough for your interference fit, the fit is tighter than it should be - check the shaft tolerance rather than reaching for more heat.

A general-purpose lithium-complex NLGI 2 covers most installations at ordinary speeds and temperatures. Confirm additive compatibility with the polyamide cage before specifying an aggressive extreme-pressure grease, and never mix thickener types in the same housing.

The ring that rotates relative to the load direction needs an interference fit - on a normal drive that is the inner ring, and k5 or k6 is the usual starting point, with H7 in the housing. Heavy shock, hollow shafts and high temperatures all change the recommendation, so confirm against the published fit table for your size.

No. Removal drives load through the ball set and dents the raceways even when nothing is visible. The damage surfaces as noise a few weeks after the machine goes back into service, by which time the cause is no longer obvious.

Measure it. Bore, outside diameter and width taken with a vernier identify a single part within this range, because no two variants share all three dimensions. Send those three numbers and we will name the designation.
