TR NA 210 Insert Bearing 50mm ID x 90mm OD x 43.7mm Width with 68.2mm Locking Collar OD

was ₹1,662.00 Special Price ₹1,371.15
TR NA 210 insert bearing with eccentric locking collar, 50 mm bore x 90 mm OD x 43.7 mm width
Eccentric locking collar (68.2 mm OD) locks the bearing on the shaft for quick, secure mounting
Standard NA 210 insert for housed bearing units in conveyors, agricultural and general machinery
Availability:
In stock
SKU
TR-BRG-NA-210

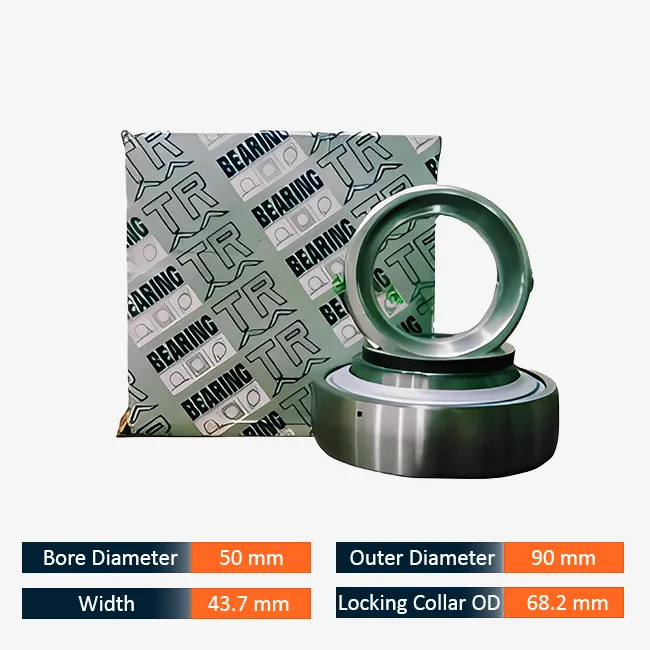

TR NA 210 Insert Bearing 50mm ID x 90mm OD x 43.7mm Width with 68.2mm Locking Collar OD

The TR NA 210 Insert Bearing is a heavy-duty 50mm bore insert bearing designed to accommodate large shafts and heavy radial loads in demanding industrial installations.

This product is part of the TR NA Insert Bearing range: Inner Diameter 50 mm, Outer Diameter 90 mm, Width 43.7 mm, Locking Collar Outer Diameter 68.2 mm.

The TR NA insert bearing is built for equipment that is fabricated rather than precision-machined: conveyor frames, fan and blower shafts, farm implements, drive shafts on packaging and processing lines. Instead of relying on an interference fit, it grips the shaft with a collar on its extended inner ring, and instead of needing a bored cylindrical seat, its convex outer ring settles into a matching spherical housing. Between them, those two features remove most of the workshop preparation that a conventional bearing demands. The series covers five bore sizes - NA 205, NA 206, NA 207, NA 208 and NA 210 - spanning 25 mm to 50 mm shafts.

Each bearing in the series arrives greased and sealed on both faces, so it goes into service as it comes out of the box. The inner ring is longer than the outer ring, and that extension does two jobs at once - it carries the locking collar, and it spreads the clamping grip along more shaft length than a plain bore could manage. The outer ring is ground convex so it can swivel a small amount inside the housing seat, which is what allows two housings bolted to a slightly uneven frame to still run a shaft without edge-loading the raceways. The series is listed for material handling, agricultural machinery, fans and blowers, packaging lines, grain handling, textile and food processing plant, crushers and wastewater equipment.

Key Features of the TR NA 210 Insert Bearing 50mm ID x 90mm OD x 43.7mm Width with 68.2mm Locking Collar OD

  • Inner Diameter: 50 mm
  • Outer Diameter: 90 mm
  • Width: 43.7 mm
  • Locking Collar Outer Diameter: 68.2 mm
  • Maximum Stability: Broad locking collar (68.2 mm OD) ensuring solid shaft grip.
  • Durability: Hardened raceways resisting fatigue in harsh working conditions.
  • Sealing: High-performance sealing system for superior contaminant protection.
  • Locking collar on an extended inner ring - clamps to plain commercial shafting without a press or interference fit
  • Convex spherical outer ring that self-aligns inside a matching housing seat

TR NA 210 Insert Bearing 50mm ID x 90mm OD x 43.7mm Width with 68.2mm Locking Collar OD Specifications

Parameter Value
Inner Diameter 50 mm
Outer Diameter 90 mm
Width 43.7 mm
Locking Collar Outer Diameter 68.2 mm
Brand TR
Manufacturer TR
HSN Code 84831090
Bore Diameter (ID) 50 mm
Outside Diameter (OD) 90 mm
Overall Bearing Width 43.7 mm
Locking Collar OD 68.2 mm
Bearing Type Insert Bearing with Locking Collar
Model TR NA 210
Bore, Outside Diameter and Width 50 mm bore, 90 mm OD, 43.7 mm width
SKU TR-BRG-NA-210

Available Options in this Range

Inner Diameter Outer Diameter Width Locking Collar Outer Diameter SKU
25 mm 52 mm 31 mm 37.4 mm TR-BRG-NA-205
30 mm 62 mm 53.7 mm 44.1 mm TR-BRG-NA-206
35 mm 72 mm 38.9 mm 51.1 mm TR-BRG-NA-207
40 mm 80 mm 43.2 mm 56.5 mm TR-BRG-NA-208
50 mm 90 mm 43.7 mm 68.2 mm TR-BRG-NA-210 This product

Applications & Industries

  • Belt conveyors and material handling drive shafts
  • Agricultural machinery - harvesters, seeders and farm implements
  • Industrial fans, blowers and fan drive assemblies
  • Packaging line drive and roller shafts
  • Grain handling equipment and rotary drums
  • Textile processing and food processing plant
  • Crushers, mining machinery and heavy processing conveyors
  • Pump drives and wastewater treatment equipment

Benefits of the TR NA 210 Insert Bearing 50mm ID x 90mm OD x 43.7mm Width with 68.2mm Locking Collar OD

Features

Industrial bearing made to standard ISO dimensions (bore, outside diameter and width) for a correct fit on shaft and housing.

Benefits

Smooth rotation, reliable load support and easy replacement using the standard size designation.

How to Choose the Right Option

  1. Confirm you need this option (Inner Diameter 50 mm, Outer Diameter 90 mm, Width 43.7 mm, Locking Collar Outer Diameter 68.2 mm) - compare it with the other options in the table above.
  2. Match the bore (inner diameter) to your shaft size.
  3. Check the outside diameter and width (or housing dimensions) against the mounting space.
  4. Copy the full designation, including any suffix, from the old bearing before ordering.
  5. Choose a sealed version where dust or moisture is present.

Why Choose Us

  • Ready stock with fast dispatch across India
  • Bulk pricing for industrial and B2B buyers
  • Quality-checked products for continuous industrial use
  • Expert support for product selection and compatibility
  • Trusted supplier for industrial laser spares and consumables

TR NA 210 Insert Bearing 50mm ID x 90mm OD x 43.7mm Width with 68.2mm Locking Collar OD Comparison

Point of Difference TR NA - Locking Collar Set Screw Type
How the shaft is gripped Collar locks against the extended inner ring and clamps around the shaft Grub screws bite into the shaft surface at one or two points
Shaft after removal Left largely unmarked, so the seat can be reused Carries indentation marks where the screws bit in
Under sustained vibration Running torque helps hold the lock, once set in the running direction Screws can back off over time and need periodic checking
Direction of shaft rotation Set around one running direction - ask us if your shaft reverses Works with rotation either way
Fitting and removal Collar turned by hand or with a drift, then locked with a grub screw Hex key only - the quickest of the two to release
Typical use Conveyors, fans, farm and processing equipment running one way Light duty and equipment that is dismantled frequently

Frequently Asked Questions

Inner Diameter: 50 mm; Outer Diameter: 90 mm; Width: 43.7 mm; Locking Collar Outer Diameter: 68.2 mm; Brand: TR; Manufacturer: TR; HSN Code: 84831090; Bore Diameter (ID): 50 mm; Outside Diameter (OD): 90 mm; Overall Bearing Width: 43.7 mm; Locking Collar OD: 68.2 mm; Bearing Type: Insert Bearing with Locking Collar; Model: TR NA 210; Bore, Outside Diameter and Width: 50 mm bore, 90 mm OD, 43.7 mm width.

The range has 5 options. See the Available Options table on this page and choose the one that matches your requirement.

Quick answer: It is the collar-locking type of mounted ball bearing - the kind you fit to a plain shaft with a drift and a hex key rather than a press. Mechanically it is a single-row ball bearing altered for direct mounting. The outer ring is ground convex so it can settle into a matching housing seat, the inner ring runs longer than the outer to carry the collar that clamps it to the shaft, and both faces are sealed at the factory. The same component appears in other catalogues as a Y-bearing or a mounted bearing insert, so those terms describe the same part.

Quick answer: 25 mm takes the NA 205, 30 mm the NA 206, 35 mm the NA 207, 40 mm the NA 208 and 50 mm the NA 210. Measure the shaft at the exact seat where the bearing will sit, then read the model off the bore. Before ordering, confirm the outside diameter against your housing and check that the collar has room to be turned. If your shaft measures between two sizes, it has probably worn - send the reading over rather than rounding it.

Quick answer: The last two digits are the bore code - multiply by five from size 04 upwards, so 06 means a 30 mm bore. TR is the brand and NA identifies the locking-collar series. The bore code is an industry-wide convention, which is why an NA 206 and a 206 housing are designed to work together. It applies across the series: 205 is 25 mm, 207 is 35 mm, 208 is 40 mm and 210 is 50 mm.

Quick answer: A standard bearing needs a machined shaft seat, a press fit and a bored cylindrical housing. An insert bearing needs none of the three. The insert version clamps to ordinary commercial shafting with its collar, drops into a spherical housing seat, takes up mounting misalignment, and comes sealed and greased. What it gives up is duty - standard bearings are available in higher precision grades for higher speeds and for machined assemblies such as gearboxes and motors.

Quick answer: It needs a housing with a spherical seat, sized to the same bore and outside diameter - pillow block, flange, take-up or cartridge. The housing seat has to be concave to match the convex outer ring, which is what allows the bearing to align itself. Sizing is by bore and outside diameter together: 52 mm for the NA 205, 62 mm for the NA 206, 72 mm for the NA 207, 80 mm for the NA 208 and 90 mm for the NA 210. Because bolt spacing and base dimensions differ between manufacturers, send us your housing measurements and we will check the match against what you already have.

Quick answer: It corrects mounting misalignment at assembly. It does not correct a shaft that flexes while running or a shaft that is bent. When two housings sit on a frame that is not perfectly true, the shaft no longer passes through both on a common axis. The spherical outer ring lets each bearing rotate slightly in its seat until it lines up, so the raceway loads evenly rather than on one edge. That adjustment is made once and then held - it is not a continuous compensation. For misalignment that persists in service, a self-aligning ball bearing with two ball rows is the correct design.
