Laser Cutting Machine Nozzle: How to Order the Right One the First Time

A practical sourcing guide for Indian fabrication workshops.

The nozzle will not seat. The operator tries a second piece, then a third from the same box, while a sheet waits on the bed. The head is a Raytools BM115 - the one BM-family model that takes a D28 body - and the box is full of D32s.

Nothing was wrong with those nozzles; the order was. That is the awkward part of buying a laser cutting machine nozzle - the part is cheap, the downtime is not, and most of the damage happens before the box is packed.

What a Laser Cutting Nozzle Actually Controls

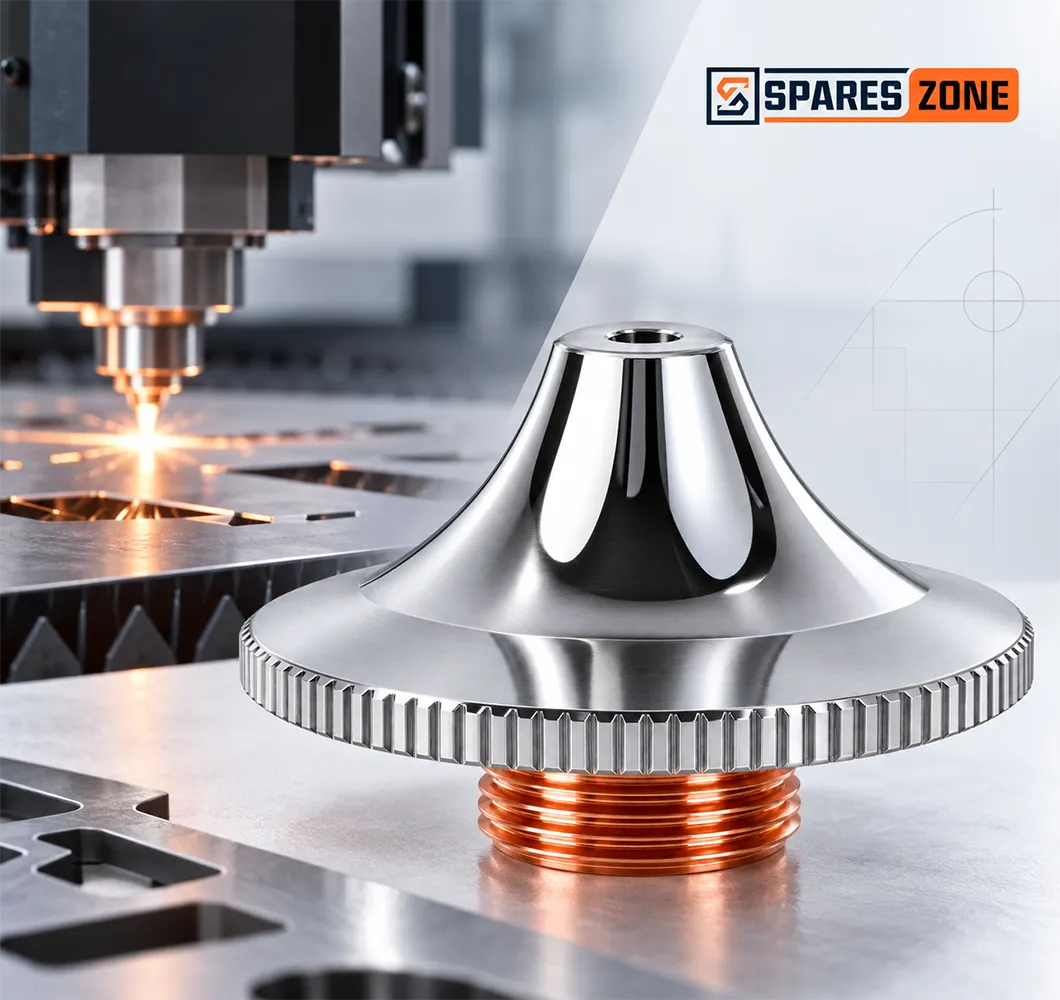

The nozzle is the copper consumable threaded into the tip of the cutting head, and it does three jobs at once: it shapes the coaxial assist gas jet that clears molten metal from the kerf, it carries the capacitive height signal the sensor reads through its body, and it shields the protective lens above from upward spatter.

That overlap is why a worn or badly seated nozzle imitates other faults - a loose thread usually shows on screen as a height sensor error and clears with a spanner, not a settings change.

Three Ordering Mistakes That Cost a Shift

1. Reordering from habit after a head change. Body diameter and thread decide whether a nozzle seats at all: D32 (32 mm body, M14 thread) on the Raytools BM-series, D28 (28 mm, M11) on WSX, Precitec, OSPRI and DNE - and on the Raytools BM115, the one exception in its own family. Upgrade the head, repeat the old order, and nothing fits.
2. Choosing the layer type from the material instead of the gas. Single layer is for nitrogen and compressed air; double layer is for oxygen. Oxygen through a single layer blackens the edge; nitrogen through a double layer creates turbulence and clinging dross. No parameter setting reverses either.
3. Buying on listing price alone. Two things separate a production-grade nozzle from a copy, and neither shows in a photo: how concentric the orifice is, and how well the thread seals. An orifice a few hundredths off-centre throws a lopsided gas cone, which prints dross on the same edge of every part and never answers to a parameter change.

What to Check Before You Place the Order

Six lines of information make a nozzle order unambiguous:

1. Cutting head brand and exact model. Not "Raytools" - a BM111 and a BM115 take different nozzles. A photo of the head label is fastest.
2. Body diameter and thread. D32 with M14, or D28 with M11. No readable label? Measure the old nozzle's body with a calliper.
3. Nozzle height. H15 or H22, matched to your head's pocket depth - the wrong height stands proud and leaks gas at the seat.
4. Layer type, set by the assist gas. Nitrogen or air takes single layer; oxygen takes double layer. Running both through the week? Order both.
5. Tip diameter, set by material and thickness. Start at 1.0-1.5 mm below 3 mm, 2.0-2.5 mm for 3-10 mm, 3.0-5.0 mm above 10 mm. Between two sizes take the larger: surplus gas tunes down at the regulator, but a starved kerf leaves drag lines.
6. Coating. Chrome-coated copper earns its cost on oxygen mild-steel work, where back-spatter is heaviest; plain copper cuts the same on nitrogen and thin stainless.

Why Sourcing Nozzles Locally in India Helps

The practical case for a domestic supplier is repeat accuracy, not just shorter transit. One who has already shipped for your machine holds the fitment on record, so the second order stops being a specification exercise - "same as last time, double the quantity" carries the head model, body, thread, height and layer type with it. Most compatibility errors disappear there.

SparesZone dispatches laser cutting nozzles from Ahmedabad, Gujarat with a GST invoice on every order, supplying workshops, OEM builders and dealers across India - Surat, Rajkot, Pune, Ludhiana and Coimbatore among them. Unsure of the fitment? Send the head model on WhatsApp to +91 92740 95891 and have it confirmed before you pay.

Getting More Cutting Hours Out of Every Nozzle

Nozzle life comes down to three habits - centration checks, careful cleaning, and replacing on evidence, not the calendar.

• Run a tape burn test. Stretch clear tape over the tip, fire a short low-power pulse and read the mark - off-centre means a worn tip or a bad seat. Weekly at minimum; daily on two-shift lines.
• Brass on the face, never pliers on the tip. A brass brush or copper stone clears spatter safely; a steel brush scores the bore and distorts the gas cone, and a tip dented by pliers leaks at the seat while the regulator still shows your set value.
• Replace on any of three signs. Dross that stops responding to parameter changes, a visibly oval or nicked orifice, or spatter reaching the protective lens more often than before.

Frequently Asked Questions

Final Thoughts

A nozzle is the cheapest part in the cutting head and the one most capable of wasting a day - and that waste is decided before the part reaches the machine. Send the head model, body and thread, height, layer type and tip size with every order, and the nozzle stops being the reason your line stands still.
