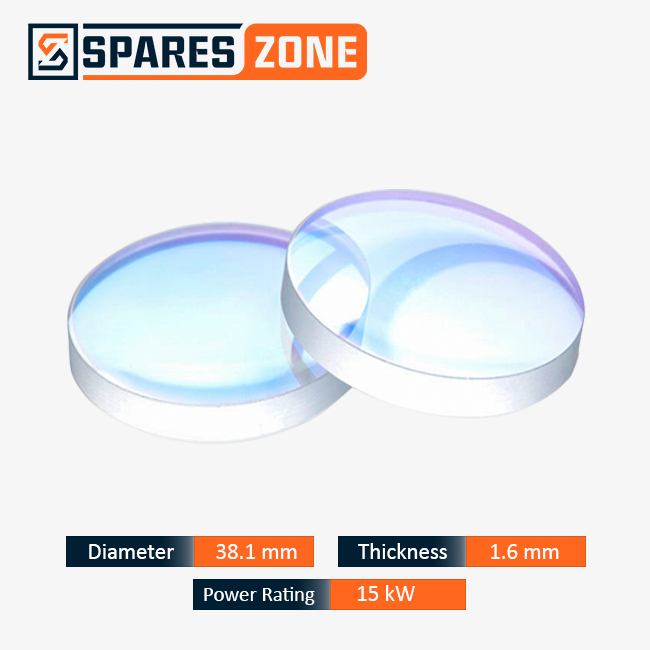

WSX 38.1 x 1.6 mm protective lens for 15kW fiber laser cutting heads in industrial CNC cutting
Optical window (38.1 mm diameter, 1.6 mm thick) that shields the focusing lens from spatter, smoke and dust
For WSX cutting heads that take 38.1 x 1.6 mm protective lenses; replace it when it is burnt or pitted
WSX Protective Lens of 1.6 mm height and 38.1 mm diameter diameter for Power 15KW
The WSX Protective Lens of 1.6 mm height and 38.1 mm diameter is designed for WSX fiber laser cutting heads operating at 15KW. It provides essential protection for internal optics against cutting debris and fumes, helping ensure consistent laser output and reliable machine performance.
This product is part of the WSX Protective Lens for Power 15KW range: Lens Height 1.6 mm, Lens Diameter 38.1 mm.
The WSX Protective Lens for 15KW fiber laser cutting machines is a standard optical consumable designed to protect critical internal components from heat, spatter, and contamination. It plays a key role in maintaining beam stability and consistent cutting quality in high-power industrial laser applications.
Key Features of the WSX Protective Lens of 1.6 mm height and 38.1 mm diameter diameter for Power 15KW
Lens Height: 1.6 mm
Lens Diameter: 38.1 mm
Accurate diameter for precise head compatibility
Supports stable laser beam transmission
Designed for continuous industrial operation
Designed specifically for 15KW fiber laser power
High optical transparency for efficient beam transmission
Protects focusing and collimating optics
Protects the focusing lens from spatter, smoke and dust
WSX Protective Lens of 1.6 mm height and 38.1 mm diameter diameter for Power 15KW Specifications
Parameter
Value
Lens Height
1.6 mm
Lens Diameter
38.1 mm
Brand
WSX
HSN Code
90019090
SKU
WSX-PL-15KW-16X381
Available Options in this Range
Lens Height
Lens Diameter
SKU
1.5 mm
55 mm
WSX-PL-15KW-15X55
1.5 mm
24.9 mm
WSX-PL-15KW-15X249
1.6 mm
37 mm
WSX-PL-15KW-16X37
1.6 mm
38.1 mm
WSX-PL-15KW-16X381
This product
2 mm
38 mm
WSX-PL-15KW-2X38
2 mm
40 mm
WSX-PL-15KW-2X40
2 mm
50 mm
WSX-PL-15KW-2X50
2 mm
21.5 mm
WSX-PL-15KW-2X215
2.5 mm
40 mm
WSX-PL-25X40
3.5 mm
37 mm
WSX-PL-15KW-35X37
4 mm
50 mm
WSX-PL-15KW-4X50
5 mm
34 mm
WSX-PL-15KW-5X34
5 mm
36 mm
WSX-PL-15KW-5X36
5 mm
37 mm
WSX-PL-15KW-5X37
5 mm
40 mm
WSX-PL-15KW-5X40
7 mm
37 mm
WSX-PL-15KW-7X37
7 mm
40 mm
WSX-PL-15KW-7X40
Applications & Industries
Fiber laser cutting machines
Industrial fabrication and manufacturing
Industrial laser cutting workshops
Sheet metal fabrication plants
OEM and contract manufacturing units
High-power laser cutting
Job work laser cutting
OEM machine maintenance
Benefits of the WSX Protective Lens of 1.6 mm height and 38.1 mm diameter diameter for Power 15KW
Features
Optical window that protects the focusing lens inside the cutting head from spatter, smoke and dust.
Benefits
Protects the more expensive focusing optics, keeps the beam path clean and reduces downtime when it is replaced on schedule.
Compatibility
Designed for WSX cutting heads requiring 38.1 mm diameter protective lenses for 15KW configurations.
Compatible with WSX fiber laser cutting heads used in 15KW laser systems.
How to Choose the Right Option
Confirm you need this option (Lens Height 1.6 mm, Lens Diameter 38.1 mm) - compare it with the other options in the table above.
Match the lens diameter and thickness to the lens holder of your cutting head.
Choose a lens rated for your laser power.
Handle the lens with clean gloves and fit it only when it is clean and dry.
Keep spare lenses - protective lenses are a regular consumable.
Why Choose Us
Ready stock with fast dispatch across India
Bulk pricing for industrial and B2B buyers
Quality-checked products for continuous industrial use
Expert support for product selection and compatibility
Trusted supplier for industrial laser spares and consumables
Get the Best Deals on the WSX Protective Lens of 1.6 mm height and 38.1 mm diameter diameter for Power 15KW
Looking for a reliable supplier of the WSX Protective Lens of 1.6 mm height and 38.1 mm diameter diameter for Power 15KW in India? Get bulk pricing, fast delivery and expert support. Contact us today for the best deal.
