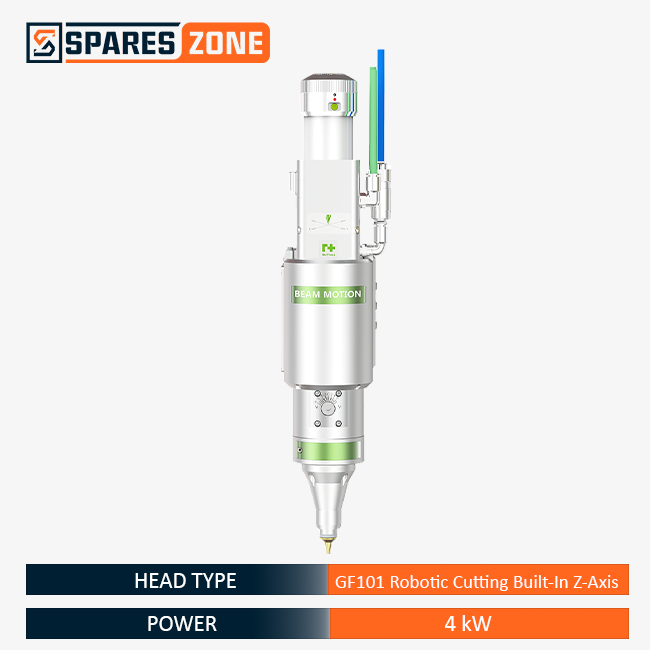

Raytools GF101 Robotic Cutting Built-In Z-Axis 4kW Laser Cutting Head

Raytools GF101 robotic fiber laser cutting head with built-in Z-axis, rated 4kW
Made for robot-mounted cutting, with stable beam delivery for accurate cuts on 3D parts
Uses standard nozzles, ceramic rings and protective lenses; for fiber laser sources up to 4kW
Availability:
In stock
SKU
RT-RBT-GF101-Z-4K

Raytools GF101 Robotic Cutting Built-In Z-Axis 4kW Laser Cutting Head

The Raytools GF101 Robotic Cutting Built-In Z-Axis 4kW Laser Cutting Head is developed for high-power robotic fiber laser cutting systems operating up to 4kW. With an integrated built-in Z-axis mechanism, it simplifies mechanical integration and improves dynamic response during multi-axis robotic movements. This configuration reduces external components while maintaining precise focus positioning and stable cutting height control.

Designed for demanding industrial environments, the GF101 ensures consistent beam quality and efficient thermal management. Its optical assembly supports reliable high-speed cutting of carbon steel, stainless steel, and alloy materials widely processed in Indian fabrication industries and global OEM facilities.

This product is part of the Raytools Robotic Fiber Laser Cutting Heads range: Power 4kW, Axis Built-in Z.

Raytools Robotic Fiber Laser Cutting Heads are developed for integration with industrial robotic systems performing high-speed and precision fiber laser cutting. These cutting heads are engineered to deliver stable beam transmission, accurate height control, and consistent cutting quality across automated production lines. Available in multiple power configurations, they support a wide range of industrial metal processing requirements.

Designed for flexibility and durability, Raytools robotic heads are suitable for dynamic multi-axis movement, enabling efficient processing of flat sheets, formed components, and structural parts. Their advanced optical assemblies and protective mechanisms ensure reliable operation in demanding manufacturing environments.

Key Features of the Raytools GF101 Robotic Cutting Built-In Z-Axis 4kW Laser Cutting Head

  • Power: 4kW
  • Axis: Built-in Z
  • Built-in Z-axis structure for compact robotic setup
  • Supports fiber laser power up to 4kW
  • Accurate capacitive height sensing system
  • Optimized cooling and dust protection design
  • Stable performance for continuous industrial use
  • Compatible with various fiber laser power ratings
  • Integrated capacitive height sensing systems

Raytools GF101 Robotic Cutting Built-In Z-Axis 4kW Laser Cutting Head Specifications

Parameter Value
Power 4kW
Axis Built-in Z
Brand Raytools
SKU RT-RBT-GF101-Z-4K

Available Options in this Range

Power Axis SKU
1.5kW External Z RT-RBT-BT220RC-Z-1K5
4kW External Z RT-RBT-BD04K-Z-4K
4kW Built-in Z RT-RBT-GF101-Z-4K This product
4kW A/B Axis RT-RBT-GF101GF102-AB-4K
8kW External Z RT-RBT-BD08K-Z-8K

Applications & Industries

  • Automotive body and chassis cutting
  • Heavy fabrication and sheet metal processing
  • Robotic laser cutting production cells
  • Automotive manufacturing plants
  • Sheet metal fabrication workshops
  • OEM robotic laser cutting systems
  • Automotive fabrication units
  • General engineering industries

Benefits of the Raytools GF101 Robotic Cutting Built-In Z-Axis 4kW Laser Cutting Head

Features

Fiber laser cutting head that focuses the beam onto the material and delivers the assist gas through the nozzle.

Benefits

Accurate focusing, stable cutting and simple maintenance with standard consumables (nozzles, ceramic rings and protective lenses).

Compatibility

Compatible with 4kW fiber laser sources, industrial robotic arms, and standard CNC laser controllers used in automated cutting systems.

Compatible with industrial robotic arms, CNC laser controllers, and fiber laser sources used in automated cutting and metal processing operations.

How to Choose the Right Option

  1. Confirm you need this option (Power 4kW, Axis Built-in Z) - compare it with the other options in the table above.
  2. Match the head to your laser source power and fiber connector.
  3. Choose the head type (2D, 3D, robotic or multi-axis) for your machine.
  4. Check the focusing method (manual or auto focus) your machine supports.
  5. Make sure nozzles, ceramic rings and protective lenses for the head are easy to source.

Why Choose Us

  • Ready stock with fast dispatch across India
  • Bulk pricing for industrial and B2B buyers
  • Quality-checked products for continuous industrial use
  • Expert support for product selection and compatibility
  • Trusted supplier for industrial laser spares and consumables

Frequently Asked Questions

Power: 4kW; Axis: Built-in Z; Brand: Raytools.

The range has 5 options. See the Available Options table on this page and choose the one that matches your requirement.

Nozzles, ceramic rings, protective lenses and, less often, focusing and collimating lenses. We stock consumables for the heads we supply.

The price depends on quantity. Bulk buyers can request a quote for the best pricing.

Yes, bulk quantities are available with competitive pricing and delivery across India.

Related Categories

Get the Best Deals on the Raytools GF101 Robotic Cutting Built-In Z-Axis 4kW Laser Cutting Head

Looking for a reliable supplier of the Raytools GF101 Robotic Cutting Built-In Z-Axis 4kW Laser Cutting Head in India? Get bulk pricing, fast delivery and expert support. Contact us today for the best deal.

Request Quote
More Information
Brand Raytools
Axis Built-in Z
Power 4kW
