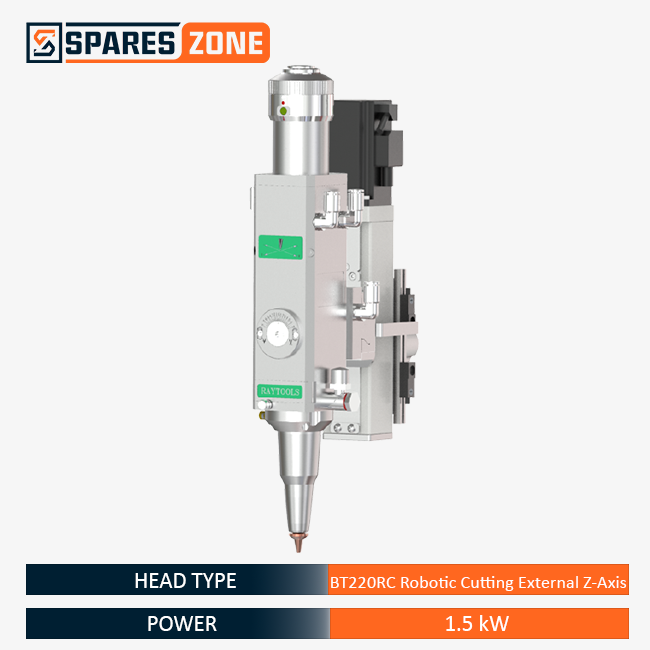

Raytools BT220RC Robotic Cutting External Z-Axis 1.5kW Laser Cutting Head

Raytools BT220RC robotic fiber laser cutting head with external Z-axis, rated 1.5kW
Made for robot-mounted cutting, with stable beam delivery for accurate cuts on 3D parts
Uses standard nozzles, ceramic rings and protective lenses; for fiber laser sources up to 1.5kW
Availability:
In stock
SKU
RT-RBT-BT220RC-Z-1K5

Raytools BT220RC Robotic Cutting External Z-Axis 1.5kW Laser Cutting Head

The Raytools BT220RC Robotic Cutting External Z-Axis 1.5kW Laser Cutting Head is engineered for precision robotic fiber laser cutting applications requiring stable height control and accurate beam delivery. Built with an external Z-axis configuration, this cutting head enables flexible integration with industrial robotic arms and automated cutting cells. It is optimized for fiber laser sources up to 1.5kW, making it suitable for thin to medium sheet metal processing in high-efficiency manufacturing environments.

Its compact and lightweight structure ensures reduced load on robotic systems while maintaining consistent cutting performance. The integrated capacitive height sensing system supports real-time surface tracking, ensuring uniform cutting quality even on uneven materials.

This product is part of the Raytools Robotic Fiber Laser Cutting Heads range: Power 1.5kW, Axis External Z.

Raytools Robotic Fiber Laser Cutting Heads are developed for integration with industrial robotic systems performing high-speed and precision fiber laser cutting. These cutting heads are engineered to deliver stable beam transmission, accurate height control, and consistent cutting quality across automated production lines. Available in multiple power configurations, they support a wide range of industrial metal processing requirements.

Designed for flexibility and durability, Raytools robotic heads are suitable for dynamic multi-axis movement, enabling efficient processing of flat sheets, formed components, and structural parts. Their advanced optical assemblies and protective mechanisms ensure reliable operation in demanding manufacturing environments.

Key Features of the Raytools BT220RC Robotic Cutting External Z-Axis 1.5kW Laser Cutting Head

  • Power: 1.5kW
  • Axis: External Z
  • External Z-axis design for robotic arm integration
  • Supports fiber laser power up to 1.5kW
  • High-precision capacitive height control system
  • Optimized optical path for stable beam transmission
  • Compact and lightweight industrial construction
  • Compatible with various fiber laser power ratings
  • Integrated capacitive height sensing systems

Raytools BT220RC Robotic Cutting External Z-Axis 1.5kW Laser Cutting Head Specifications

Parameter Value
Power 1.5kW
Axis External Z
Brand Raytools
SKU RT-RBT-BT220RC-Z-1K5

Available Options in this Range

Power Axis SKU
1.5kW External Z RT-RBT-BT220RC-Z-1K5 This product
4kW External Z RT-RBT-BD04K-Z-4K
4kW Built-in Z RT-RBT-GF101-Z-4K
4kW A/B Axis RT-RBT-GF101GF102-AB-4K
8kW External Z RT-RBT-BD08K-Z-8K

Applications & Industries

  • Robotic sheet metal cutting cells
  • Automotive component manufacturing
  • Fabrication workshops and OEM production lines
  • Automotive manufacturing plants
  • Sheet metal fabrication workshops
  • OEM robotic laser cutting systems
  • Automotive fabrication units
  • General engineering industries

Benefits of the Raytools BT220RC Robotic Cutting External Z-Axis 1.5kW Laser Cutting Head

Features

Fiber laser cutting head that focuses the beam onto the material and delivers the assist gas through the nozzle.

Benefits

Accurate focusing, stable cutting and simple maintenance with standard consumables (nozzles, ceramic rings and protective lenses).

Compatibility

Compatible with industrial robotic arms, fiber laser sources up to 1.5kW, and standard CNC laser control systems used in automated cutting applications.

Compatible with industrial robotic arms, CNC laser controllers, and fiber laser sources used in automated cutting and metal processing operations.

How to Choose the Right Option

  1. Confirm you need this option (Power 1.5kW, Axis External Z) - compare it with the other options in the table above.
  2. Match the head to your laser source power and fiber connector.
  3. Choose the head type (2D, 3D, robotic or multi-axis) for your machine.
  4. Check the focusing method (manual or auto focus) your machine supports.
  5. Make sure nozzles, ceramic rings and protective lenses for the head are easy to source.

Why Choose Us

  • Ready stock with fast dispatch across India
  • Bulk pricing for industrial and B2B buyers
  • Quality-checked products for continuous industrial use
  • Expert support for product selection and compatibility
  • Trusted supplier for industrial laser spares and consumables

Frequently Asked Questions

Power: 1.5kW; Axis: External Z; Brand: Raytools.

The range has 5 options. See the Available Options table on this page and choose the one that matches your requirement.

Nozzles, ceramic rings, protective lenses and, less often, focusing and collimating lenses. We stock consumables for the heads we supply.

The price depends on quantity. Bulk buyers can request a quote for the best pricing.

Yes, bulk quantities are available with competitive pricing and delivery across India.

Related Categories

Get the Best Deals on the Raytools BT220RC Robotic Cutting External Z-Axis 1.5kW Laser Cutting Head

Looking for a reliable supplier of the Raytools BT220RC Robotic Cutting External Z-Axis 1.5kW Laser Cutting Head in India? Get bulk pricing, fast delivery and expert support. Contact us today for the best deal.

Request Quote
More Information
Brand Raytools
Axis External Z
Power 1.5kW
