WSX 37x7 6KW Protective lens

WSX 37x7 6KW Protective lens

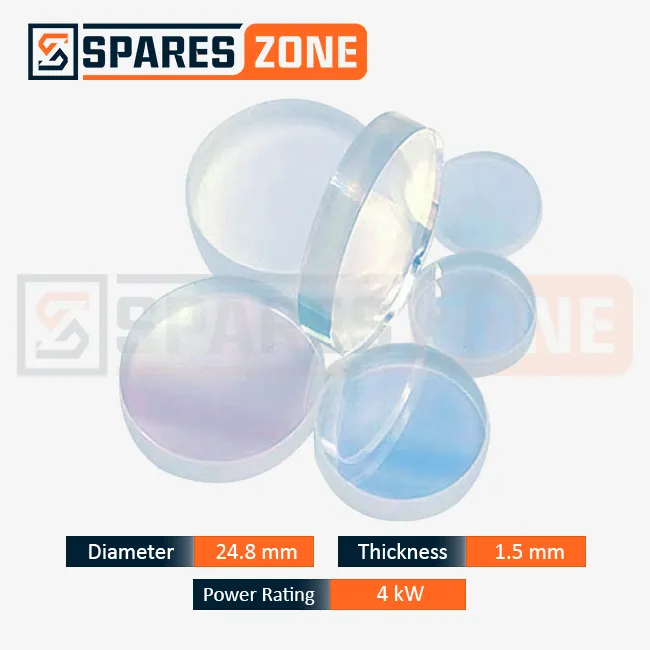

Raytools Original Protective Lens D24.8 x 1.5mm for 4KW

Brand

Raytools Raytools
Be the first to review this product
was ₹599.00 Special Price ₹399.00

Original Raytools protective window in the 24.8 × 1.5 mm size - the collimation-side optic that guards the collimating lens inside the sealed upper section of a fiber laser cutting head. AR-coated on both faces for 1064-1080 nm with over 99% transmittance, and dimensioned for 4 kW-class Raytools heads with drawer-type holders. Unlike the focusing-side window below it, this one is not a weekly consumable: in a healthy head it stays clean for months, and a dirty one means contamination has found a way inside. GST invoice on every order, with bulk rates for workshops, service engineers and dealers.

Availability:
In stock
SKU
RT-OG-PL-D248-15-4KW
Add to Wish List Add to Compare

Raytools Original Protective Lens D24.8 x 1.5mm for 4KW Fiber Laser Cutting Heads

The Raytools Original Protective Lens D24.8 x 1.5mm is a genuine Raytools fused-silica protective window sized at 24.8mm diameter x 1.5mm thickness, built for the collimation side of Raytools fiber laser cutting heads rated up to 4kW. It shields the internal collimating lens from spatter, smoke and dust, forming a low-cost sacrificial barrier that keeps beam quality stable during daily cutting.

Raytools is a well-known fiber laser cutting head brand, and this 24.8 x 1.5mm window sits in the same standard collimation-lens size family used on Raytools heads such as the BM109, BM111 and BT-series (Raytools lists a closely related 24.9 x 1.5mm collimation window across its documentation). As a genuine Raytools part, it is made to the manufacturer's own tolerance for a flush, correct seat in the collimation-lens holder, rather than an approximate aftermarket fit. Like any protective window, it is a routine, sacrificial consumable and should be replaced once pitting, haze or a drop in cut quality becomes visible.

Key Features of the Raytools D24.8 x 1.5mm Protective Lens

  • Genuine Raytools fused-silica (quartz) collimation-side protective window
  • Sized at 24.8mm diameter x 1.5mm thickness
  • Rated for Raytools fiber laser cutting heads up to 4kW
  • Fits standard Raytools collimation-lens holders
  • Low-cost, routine sacrificial consumable
  • Suited to daily-use industrial cutting environments

Applications & Industries

  • Raytools-Equipped Fiber Laser Sheet Metal Cutting Machines
  • Automotive & Auto-Component Manufacturing
  • Industrial Machinery & Fabrication Units
  • Metal Processing & Laser Job-Work Shops
  • Electrical Enclosure & Panel Manufacturing
  • General CNC Laser Cutting Operations

Benefits of the Raytools D24.8 x 1.5mm Protective Lens

Features

A genuine Raytools 24.8mm x 1.5mm collimation-side window rated to 4kW, built to seat directly into standard Raytools collimation-lens holders.

Benefits

Protects the collimating lens from spatter and dust, helps maintain stable beam quality, and keeps replacement quick and predictable on Raytools-equipped machines.

How to Confirm You Need This Size

  1. Confirm your cutting head is a Raytools model using a collimation-side window near 24.8-24.9mm x 1.5mm.
  2. Confirm your machine's rated power falls within the 4kW class this lens covers.
  3. Check whether your head needs the collimation-side window (this part) or a separate process-side/focusing window.
  4. Inspect the current window for pitting, haze or cracking before ordering.
  5. Choose a genuine Raytools part rather than an unbranded equivalent for guaranteed fitment.

Why Choose Us

  • Genuine Raytools optics - not unbranded or mixed-quality glass
  • Ready stock for fast dispatch and reduced machine downtime
  • GST-registered supplier (GSTIN 24AFSFS3212F1Z2) with proper invoicing
  • Expert support for size and compatibility selection on WhatsApp
  • Bulk pricing and pan-India delivery from Ahmedabad, Gujarat

Genuine Raytools D24.8 x 1.5mm Lens vs Generic Lens

ParameterGenuine Raytools LensGeneric / Local Lens
SubstrateHigh-purity fused silicaMixed / unspecified glass
Dimension Match24.8mm x 1.5mm, exactClose but not exact
Power RatingMatched to 4kW classOften unspecified
FitmentExact Raytools sizingTolerance issues

Frequently Asked Questions

It is a genuine Raytools fused-silica window that protects the collimating lens inside a Raytools fiber laser cutting head from spatter, smoke and dust.

24.8mm diameter x 1.5mm thickness, rated for Raytools cutting heads running up to 4kW.

Raytools heads that use a collimation-side window in the 24.8-24.9mm x 1.5mm size family. Confirm your exact head model before ordering.

This is the collimation-side protective window. Raytools heads typically use a separate, differently sized window on the process/focusing side.

Yes, bulk quantities are available with a GST invoice for business buyers.

Related Categories

Laser Protective LensView Focus & Collimation LensView Laser Cutting HeadView

Get the Genuine Raytools D24.8 x 1.5mm Protective Lens for Your Head

Confirm fitment and order the genuine Raytools 24.8 x 1.5mm, 4kW-rated collimation protective lens for your fiber laser cutting head, with bulk pricing and pan-India delivery.

Request Quote
More Information
Brand Raytools
Lens Height 7 mm
Lens Diameter 37 mm
