37 x 7 mm protective lens for 10kW fiber laser cutting heads in industrial CNC cutting
Fused silica window that shields the focusing lens from spatter, smoke and dust
Fits fiber laser cutting heads that take 37 x 7 mm protective lenses; replace it when it is burnt or pitted

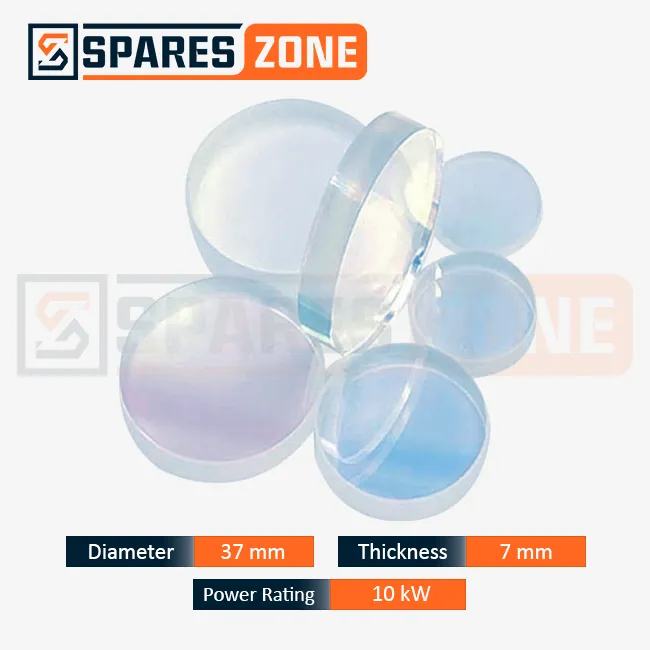

37x7 10KW Protective Lens for Fiber Laser Cutting Heads
The 37x7 10KW Protective Lens is a fused-silica protective window sized at 37mm diameter x 7mm thickness, rated for fiber laser cutting heads running up to 10kW. It fits the process or collimation side of the head, forming a replaceable barrier that shields the internal focusing and collimation optics from spatter, smoke and thermal stress during cutting.
The 37x7mm format is one of the standard higher-power protective window sizes used across several fiber laser cutting head brands, and is produced in multiple power-rated variants from around 10kW up to 30kW and beyond, since the thickness needed to safely handle thermal stress scales with power. The 10kW-rated version sits at the entry point of this format's power range. Like any protective window, it is a routine, sacrificial wear part meant to be replaced once pitting, haze or a drop in cut quality shows up, so the more expensive focusing and collimation lenses behind it stay protected.
Key Features of the 37x7 10KW Protective Lens
Fused-silica (quartz) construction sized at 37mm diameter x 7mm thickness
Rated for fiber laser cutting heads up to 10kW
Fits heads specified for this diameter and thickness combination
Acts as a sacrificial barrier for the internal focus/collimation optics
Standard higher-power window format used across several head brands
Suited to daily-use industrial cutting environments
Applications & Industries
High-Power Fiber Laser Sheet Metal Cutting Machines
Automotive & Auto-Component Manufacturing
Industrial Machinery & Fabrication Units
Metal Processing & Laser Job-Work Shops
Structural Steel & Heavy Fabrication
High-Power CNC Laser Cutting Operations
Benefits of the 37x7 10KW Protective Lens
Features
A 37mm x 7mm fused-silica window rated to 10kW, sized to seat directly into a matching cutting head's process or collimation-side lens holder.
Benefits
Protects the head's expensive focusing and collimation optics, helps maintain consistent cut quality, and keeps downtime and maintenance cost lower.
How to Confirm You Need This Size
Check your cutting head's specified lens diameter and thickness against 37x7mm.
Confirm your machine's rated power falls within the 10kW class this lens covers.
Compare against the 15kW, 20kW and 30kW versions of the same 37x7 size if your machine runs higher power.
Inspect the current window for pitting, haze or cracking before ordering.
Confirm fitment with the supplier before placing a bulk order.
Why Choose Us
Correctly sized 37x7mm fused-silica window, not an approximate fit
Ready stock for fast dispatch and reduced machine downtime
GST-registered supplier (GSTIN 24AFSFS3212F1Z2) with proper invoicing
Expert support for size and power-rating selection on WhatsApp
Bulk pricing and pan-India delivery from Ahmedabad, Gujarat
Correctly Sized 37x7 10KW Lens vs a Mismatched Lens
Parameter
Correctly Sized 37x7 10KW Lens
Approximate / Mismatched Lens
Dimension Match
37mm x 7mm, exact
Close but not exact
Power Rating
Matched to 10kW class
Under-rated for the application
Seating in Holder
Sits flush, no gap
Loose fit or forced fit
Thermal Handling
Suited to the rated power
Higher risk of thermal stress damage
Frequently Asked Questions
It is a sacrificial fused-silica window that protects the focusing and collimation optics inside a fiber laser cutting head from spatter, smoke and debris.
37mm diameter x 7mm thickness, rated for cutting heads running up to 10kW.
Fiber laser cutting heads specified for a 37x7mm process or collimation-side window rated to 10kW. Confirm your head's lens holder size before ordering.
Replace it when you notice pitting, burn marks, haze or a drop in cut quality. In daily production it is a routine, frequently-changed consumable.
Yes, bulk quantities are available with a GST invoice for business buyers.
Get the Right 37x7 10KW Protective Lens for Your Cutting Head
Confirm fitment and order the correctly sized 37x7, 10kW-rated protective lens for your fiber laser cutting head, with bulk pricing and pan-India delivery.
