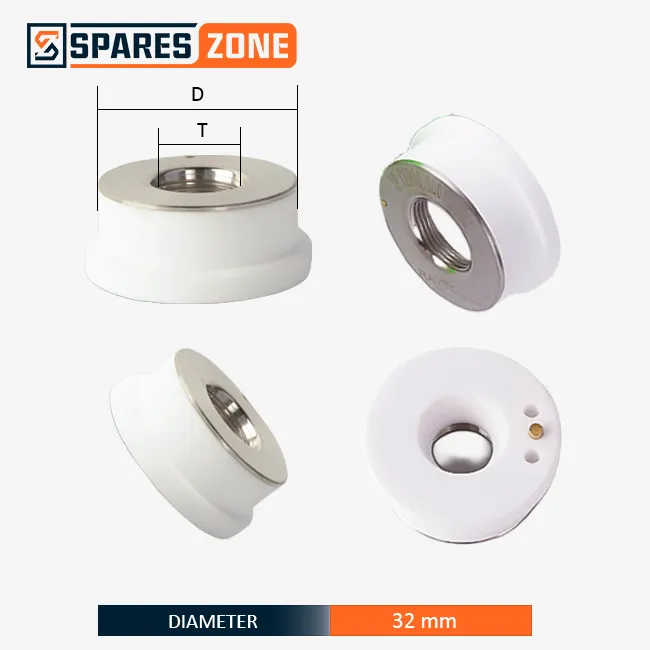

If your laser cutting head is giving inconsistent height-sensing readings, nozzle collisions, or occasional arcing near the nozzle tip, the ceramic ring is usually the first part to inspect. This is the genuine Raytools ceramic ring, 32 mm diameter - the insulating ring that sits around the nozzle and lets the head's capacitive height-sensing system work correctly. It's currently in stock and dispatches within 1-3 business days from our Ahmedabad warehouse, with delivery across India.
The ceramic ring isn't just a spacer - it's an electrical insulator made from high-purity alumina ceramic that keeps the nozzle electrically isolated from the rest of the head body. This isolation is what allows the capacitive sensor to measure nozzle-to-sheet distance accurately and maintain a consistent standoff during cutting. A cracked, chipped, or carbon-tracked ring breaks that isolation, and the first symptom is almost always erratic height sensing before anything else looks visibly wrong. This 32 mm ring is a standard fitment size used across most Raytools BM and BT series heads, and it's a routine wear part in any shop running regular production hours.
Specifications
Specification
Detail
Diameter
32 mm
Material
High-purity alumina ceramic
Function
Electrical insulation for capacitive height sensing
Fiber laser heads use a capacitive sensor to keep the nozzle at a fixed distance from the sheet while cutting contours and holes. That sensor only works if the nozzle is electrically isolated from the rest of the head - and the ceramic ring is what creates that isolation. Once the ring cracks, chips, or picks up a carbon track from repeated arcing, the insulation weakens and the sensor starts reading distance incorrectly. This shows up as inconsistent standoff height, occasional nozzle strikes on the sheet, or the head triggering false collision alarms even when nothing is physically wrong.
Signs You Need to Replace It
Height sensing becomes inconsistent or drifts during a cut
Occasional nozzle collision or scraping on the sheet
Visible crack, chip, or dark carbon track on the ring surface
Arcing or sparking near the nozzle base
Machine throws intermittent height-sensor or collision faults
Cutting was stable last week, now the head seems "jumpy"
Features & Benefits
Features
Genuine Raytools 32 mm alumina ceramic ring, high dielectric strength, precise fitment for BM/BT series nozzle housings, resistant to the heat and spatter around the nozzle zone.
Benefits
Restores accurate capacitive height sensing, reduces nozzle collisions and false alarms, protects the nozzle holder from arc damage, and avoids unplanned line stops from a part that costs far less than the downtime it prevents.
Genuine Raytools Ring vs Generic Ceramic Ring
Parameter
Genuine Raytools (this product)
Generic / Unbranded
Material grade
High-purity alumina ceramic
Mixed-grade, often undocumented
Dielectric strength
Consistent, rated for sensing accuracy
Variable, can cause sensor drift
Fitment
Exact 32 mm nozzle-housing fit
Tolerance mismatches common
Heat/spatter resistance
Rated for continuous production
Cracks or carbon-tracks sooner
Sensing reliability
Stable, repeatable readings
Prone to false alarms
Why Order From Spareszone ?
Genuine Raytools ceramic ring - not unbranded or mixed-quality ceramic
In stock right now - dispatched in 1-3 business days
GST-registered supplier (GSTIN 24AFSFS3212F1Z2) with proper invoicing
Ahmedabad-based warehouse with pan-India courier reach
WhatsApp support to confirm head model and fitment before you order
Bulk pricing for job-work shops and fabrication units
Frequently Asked Questions
It electrically isolates the nozzle from the head body, which is what allows the capacitive height-sensing system to measure the distance to the sheet accurately.
It's a standard fitment across Raytools BM and BT series heads, including BM109, BM111, BM114S, BT210S, BT240S and BT240S-RC.
The most common signs are inconsistent height sensing, nozzle collisions, arcing near the nozzle base, or a visible crack, chip, or carbon track on the ring.
Yes - once insulation breaks down, arcing can damage the nozzle holder and cause repeated nozzle strikes, so it's best to replace the ring as soon as symptoms appear.
Yes, this is a genuine Raytools alumina ceramic ring, not a generic replacement.
It's in stock and dispatches within 1-3 business days, with courier delivery across India.
Yes, every order ships with a proper GST invoice for your records.
Yes, bulk pricing is available - message us on WhatsApp with your quantity for the best rate.
In stock, dispatched in 1-3 business days, with GST invoice and pan-India delivery. Message us on WhatsApp if you'd like your head model confirmed before ordering, or request a quote for bulk quantities.
